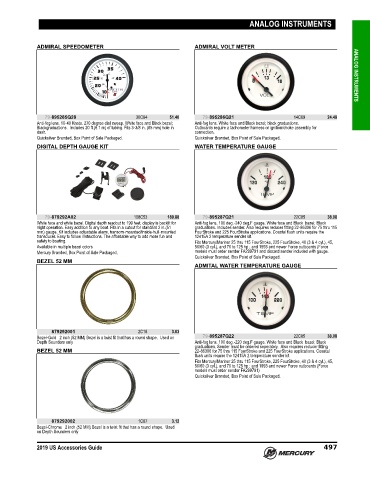

Page 510 - US ACCESSORIES GUIDE (2019)

ANALOG INSTRUMENTS

ADMIRAL SPEEDOMETER ADMIRAL VOLT METER ANALOG INSTRUMENTS

79-895285Q28 30C84 51.40 79-895286Q21 14C69 24.48
Anti‑fog lens. 10‑40 Knots. 270 degree dial sweep. White face and Black bezel; Anti‑fog lens. White face and Black bezel; black graduations.
Blackgraduations. Includes 20 ft.(6.1 m) of tubing. Fits 3‑3/8 in. (85 mm) hole in Outboards require a tachometer harness or ignition/choke assembly for
dash. connection.
Quicksilver Branded, Box Point of Sale Packaged. Quicksilver Branded, Box Point of Sale Packaged.
DIGITAL DEPTH GAUGE KIT WATER TEMPERATURE GAUGE

79-879292A02 108C53 180.88 79-895287Q21 22C85 38.08
White face and white bezel. Digital depth readout to 199 feet, display is backlit for Anti‑fog lens. 100 deg.‑240 deg.F gauge. White face and Black bezel; Black
night operation. Easy addition to any boat. Fits in a cutout for standard 2 in.(51 graduations. Includes sender. Also requires reducer fitting 22‑86306 for 75 thru 115
mm) gauge. Kit includes adjustable alarm, transom‑mounted/inside‑hull‑mounted FourStroke and 225 FourStroke applications. Coastal flush units require the
transducer. Easy to follow instructions. The affordable way to add more fun and 12415A 2 temperature sender kit.
safety to boating. Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
Available in multiple bezel colors 50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
Mercury Branded, Box Point of Sale Packaged. models must order sender FA299791 and discard sender included with gauge.
Quicksilver Branded, Box Point of Sale Packaged.
BEZEL 52 MM
ADMITAL WATER TEMPERATURE GAUGE

879292001 2C18 3.63
Bezel‑Gold 2 inch (52 MM) Bezel is a twist fit that has a round shape. Used on 79-895287Q22 22C85 38.08
Depth Sounders only Anti‑fog lens. 100 deg.‑220 deg.F gauge. White face and Black bezel; Black
graduations. Sender must be ordered seperately. Also requires reducer fitting
BEZEL 52 MM 22‑86306 for 75 thru 115 FourStroke and 225 FourStroke applications. Coastal
flush units require the 12415A 2 temperature sender kit.
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
models must order sender FA299791)
Quicksilver Branded, Box Point of Sale Packaged.

879292002 1C87 3.12
Bezel‑Chrome 2 inch (52 MM) Bezel is a twist fit that has a round shape. Used
on Depth Sounders only

2019 US Accessories Guide 497
