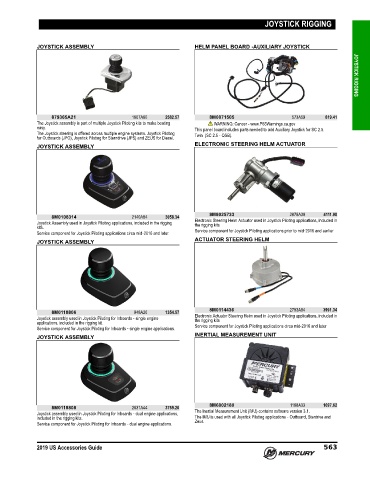

Page 576 - US ACCESSORIES GUIDE (2019)

JOYSTICK RIGGING

JOYSTICK ASSEMBLY HELM PANEL BOARD -AUXILIARY JOYSTICK JOYSTICK RIGGING

879365A21 1807A80 2582.57 8M0071505 573A59 819.41
The Joystick assembly is part of multiple Joystick Piloting kits to make boating WARNING: Cancer - www.P65Warnings.ca.gov
easy. This panel board includes parts needed to add Auxiliary Joystick for SC 2.5.
The Joystick steering is offered across multiple engine systems. Joystick Piloting Twin (SC 2.5 ‑ QSB).
for Outboards (JPO), Joystick Piloting for Sterndrive (JPS) and ZEUS for Diesel.
JOYSTICK ASSEMBLY ELECTRONIC STEERING HELM ACTUATOR

8M0108314 2140A84 3058.34 8M8025733 2878A39 4111.98
Joystick Assembly used in Joystick Piloting applications, included in the rigging Electronic Steering Helm Actuator used in Joystick Piloting applications, included in
the rigging kits
kits.
Service component for Joystick Piloting applications circa mid‑2016 and later. Service component for Joystick Piloting applications prior to mid‑2016 and earlier
JOYSTICK ASSEMBLY ACTUATOR STEERING HELM

8M0114436 2793A94 3991.34
8M0118806 948A20 1354.57
Joystick assembly used in Joystick Piloting for Inboards ‑ single engine Electronic Actuator Steering Helm used in Joystick Piloting applications, included in
the rigging kits
applications, included in the rigging kit.
Service component for Joystick Piloting for Inboards ‑ single engine applications. Service component for Joystick Piloting applications circa mid‑2016 and later
INERTIAL MEASUREMENT UNIT
JOYSTICK ASSEMBLY

8M6002180 1188A33 1697.62
8M0118808 2631A44 3759.20
Joystick assembly used in Joystick Piloting for Inboards ‑ dual engine applications, The Inertial Measurement Unit (IMU) contains software version 3.1.
included in the rigging kits. The IMU is used with all Joystick Piloting applications ‑ Outboard, Sterdrive and
Service component for Joystick Piloting for Inboards ‑ dual engine applications. Zeus.
