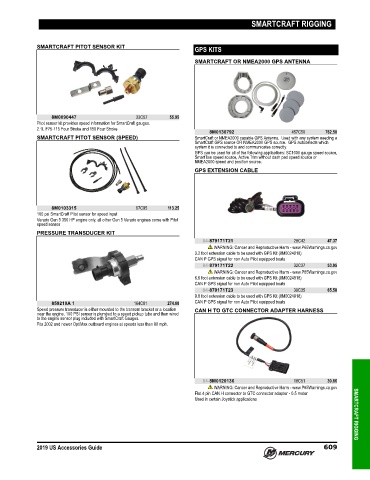

Page 622 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT RIGGING

SMARTCRAFT PITOT SENSOR KIT
GPS KITS
SMARTCRAFT OR NMEA2000 GPS ANTENNA

8M0090447 33C57 55.95
Pitot sensor kit provides speed information for SmartCraft gauges.
2.1L F75‑115 Four Stroke and 150 Four Stroke
8M0130792 457C50 762.50
SMARTCRAFT PITOT SENSOR (SPEED) SmartCraft or NMEA2000 capable GPS Antenna. Used with any system needing a
SmartCraft GPS source OR NMEA2000 GPS source. GPS autodetects which
system it is connected to and communicates correctly.
GPS can be used for all of the following applications: SC1000 gauge speed source,
SmartTow speed source, Active Trim without dash pad speed source or
NMEA2000 speed and position source.
GPS EXTENSION CABLE

8M0103315 67C95 113.25
100 psi SmartCraft Pitot sensor for speed input
Verado Gen 5 350 HP engine only, all other Gen 5 Verado engines come with Pitot
speed sensor
PRESSURE TRANSDUCER KIT
84-879171T21 28C42 47.37
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
3.2 foot extension cable to be used with GPS Kit (8M0024918)
CAN P GPS signal for non Auto Pilot equipped boats
84-879171T22 32C37 53.95
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
6.6 foot extension cable to be used with GPS Kit (8M0024918)
CAN P GPS signal for non Auto Pilot equipped boats
84-879171T23 39C35 65.58
9.8 foot extension cable to be used with GPS Kit (8M0024918)
859210A 1 164C81 274.68 CAN P GPS signal for non Auto Pilot equipped boats
Speed pressure transducer is either mounted to the transom bracket or a location CAN H TO GTC CONNECTOR ADAPTER HARNESS
near the engine. 100 PSI sensor is plumbed to a speed pickup tube and then wired
to the engine sensor plug included with SmartCraft Gauges.
Fits 2002 and newer OptiMax outboard engines at speeds less than 80 mph.

84-8M0120136 18C51 30.86
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Flat 4 pin CAN H connector to GTC connector adapter ‑ 0.5 meter
Used in certain Joystick applications SMARTCRAFT RIGGING

2019 US Accessories Guide 609
