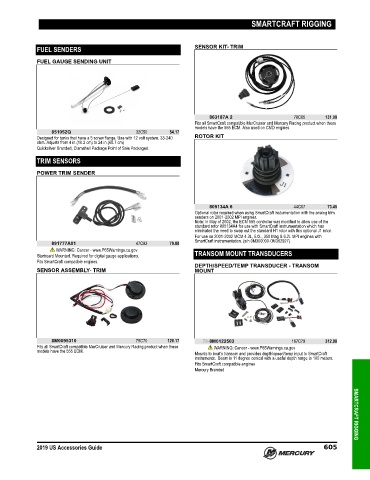

Page 618 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT RIGGING

FUEL SENDERS SENSOR KIT- TRIM

FUEL GAUGE SENDING UNIT

863187A 2 78C65 131.08
Fits all SmartCraft compatible MerCruiser and Mercury Racing product when these
models have the 555 ECM. Also used on CMD engines
851052Q 32C50 54.17
Designed for tanks that have a 5 screw flange. Use with 12 volt system. 33‑240 ROTOR KIT
ohm. Adjusts from 4 in.(10.2 cm) to 24 in.(60.7 cm)
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
TRIM SENSORS

POWER TRIM SENDER

805134A 6 44C07 73.45
Optional rotor required when using SmartCraft instumentation with the analog trim
senders on 2001‑2002 MPI engines.
Note: In May of 2002, the ECM 555 controller was modified to allow use of the
standard rotor 805134A4 for use with SmartCraft instrumentation which has
eliminated the need to swap out the standard H1 rotor with this optional J1 rotor.
For use on 2001‑2002 MCM 4.3L, 5.0L, 350 Mag & 6.2L MPI engines with
891777A01 47C93 79.88 SmartCraft instrumentation. (s/n 0M300000‑0M362927)
WARNING: Cancer - www.P65Warnings.ca.gov
Starboard Mounted. Required for digital gauge applications. TRANSOM MOUNT TRANSDUCERS
Fits SmartCraft compatible engines.
DEPTH/SPEED/TEMP TRANSDUCER - TRANSOM
SENSOR ASSEMBLY- TRIM MOUNT

8M0095310 75C70 126.17 79-8M0122503 187C79 312.98
Fits all SmartCraft compatible MerCruiser and Mercury Racing product when these WARNING: Cancer - www.P65Warnings.ca.gov
models have the 555 ECM.
Mounts to boat's transom and provides depth/speed/temp input to SmartCraft
instruments. Beam is 11 degree conical with a useful depth range to 100 meters.
Fits SmartCraft compatible engines
Mercury Branded

2019 US Accessories Guide 605 SMARTCRAFT RIGGING
