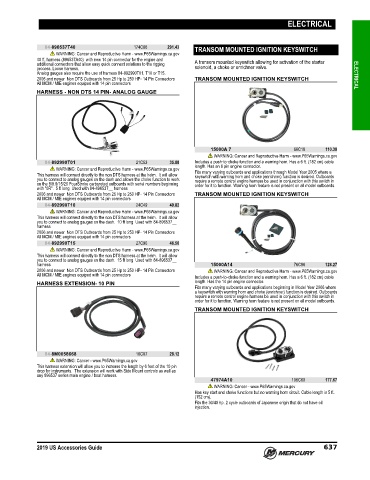

Page 650 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

84-896537T40 174C86 291.43 TRANSOM MOUNTED IGNITION KEYSWITCH
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
40 ft. harness (896537A40) with new 14 pin connector for the engine and A transom mounted keyswitch allowing for activation of the starter
additional connectors that allow easy quick connect solutions to the rigging
process. Loose harness. solenoid, a choke or enrichner valve.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15. ELECTRICAL
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors TRANSOM MOUNTED IGNITION KEYSWITCH
All MCM / MIE engines equiped with 14 pin connectors
HARNESS - NON DTS 14 PIN- ANALOG GAUGE

15000A 7 66C18 110.30
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
84-892990T01 21C53 35.88 Includes a push‑to‑choke function and a warning horn. Has a 6 ft. (182 cm) cable
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov length. Has an 8 pin engine connector.
This harness will connect directly to the non DTS harness at the helm. It will allow Fits many varying outboards and applications through Model Year 2005 where a
keyswitch with warning horn and choke (enrichner) function is desired. Outboards
you to connect to analog gauges on the dash and allows the choke function to work require a remote control engine harness be used in conjunction with this switch in
on the 8/9.9/15/20 FourStroke carbureted outboards with serial numbers beginning order for it to function. Warning horn feature is not present on all model outboards.
with "0R". 5 ft long Used with 84‑896537__ harness
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors TRANSOM MOUNTED IGNITION KEYSWITCH
All MCM / MIE engines equiped with 14 pin connectors
84-892990T10 24C49 40.82
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This harness will connect directly to the non DTS harness at the helm. It will allow
you to connect to analog gauges on the dash. 10 ft long Used with 84‑896537__
harness
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
84-892990T15 27C90 46.50
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This harness will connect directly to the non DTS harness at the helm. It will allow
you to connect to analog gauges on the dash. 15 ft long Used with 84‑896537__
harness 15000A14 76C96 128.27
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
All MCM / MIE engines equiped with 14 pin connectors
Includes a push‑to‑choke function and a warning horn. Has a 6 ft. (182 cm) cable
HARNESS EXTENSION- 10 PIN length. Has the 14 pin engine connector.
Fits many varying outboards and applications beginning in Model Year 2006 where
a keyswitch with warning horn and choke (enrichner) function is desired. Outboards
require a remote control engine harness be used in conjunction with this switch in
order for it to function. Warning horn feature is not present on all model outboards.
TRANSOM MOUNTED IGNITION KEYSWITCH

84-8M0058668 16C87 28.12
WARNING: Cancer - www.P65Warnings.ca.gov
This harness extension will allow you to increase the length by 6 feet of the 10 pin
drop for instruments. The extension will work with Side Mount controls as well as
any 896537 series main engine / boat harness.
47974A10 106C60 177.67
WARNING: Cancer - www.P65Warnings.ca.gov
Has key start and choke functions but no warning horn circuit. Cable length is 5 ft.
(152 cm).
Fits the 30/40 hp. 2 cycle outboards of Japanese origin that do not have oil
injection.

2019 US Accessories Guide 637
