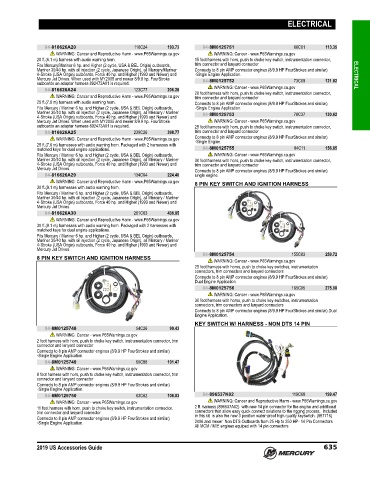

Page 648 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

84-816626A20 116C24 193.73 84-8M0125751 68C01 113.35
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer - www.P65Warnings.ca.gov
20 ft.(6.1 m) harness with audio warning horn. 15 foot harness with horn, push to choke key switch, instrumentation connector,
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards, trim connector and lanyard connector
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner Connects to 8 pin AMP connector engines (8/9.9 HP FourStrokes and similar)
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and ‑Single Engine Application. ELECTRICAL
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke 84-8M0125752 73C09 121.82
outboards an adapter harness 892473A01 is required.
WARNING: Cancer - www.P65Warnings.ca.gov
84-816626A24 123C77 206.28 20 foot harness with horn, push to choke key switch, instrumentation connector,
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov trim connector and lanyard connector
25 ft.(7.6 m) harness with audio warning horn. Connects to 8 pin AMP connector engines (8/9.9 HP FourStrokes and similar)
Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards, ‑Single Engine Application.
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner 84-8M0125753 78C37 130.62
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke WARNING: Cancer - www.P65Warnings.ca.gov
outboards an adapter harness 892473A01 is required. 25 foot harness with horn, push to choke key switch, instrumentation connector,
84-816626A25 239C26 398.77 trim connector and lanyard connector
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Connects to 8 pin AMP connector engines (8/9.9 HP FourStrokes and similar)
‑Single Engine.
25 ft.(7.6 m) harnesses with audio warning horn. Packaged with 2 harnesses with
matched keys for dual engine applications. 84-8M0125755 94C11 156.85
Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards, WARNING: Cancer - www.P65Warnings.ca.gov
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner 30 foot harness with horn, push to choke key switch, instrumentation connector,
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and trim connector and lanyard connector
Mercury Jet Drives. Connects to 8 pin AMP connector engines (8/9.9 HP FourStrokes and similar)
84-816626A29 134C64 224.40 single engine.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 8 PIN KEY SWITCH AND IGNITION HARNESS
30 ft.(9.1 m) harnesses with audio warning horn.
Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives.
84-816626A30 261C63 436.05
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
30 ft.(9.1 m) harnesses with audio warning horn. Packaged with 2 harnesses with
matched keys for dual engine applications.
Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives.
84-8M0125754 155C83 259.72
8 PIN KEY SWITCH AND IGNITION HARNESS
WARNING: Cancer - www.P65Warnings.ca.gov
25 foot harness with horns, push to choke key switches, instrumentation
connectors, trim connectors and lanyard connectors
Connects to 8 pin AMP connector engines (8/9.9 HP FourStrokes and similar)
Dual Engine Application.
84-8M0125756 165C05 275.08
WARNING: Cancer - www.P65Warnings.ca.gov
30 foot harness with horns, push to choke key switches, instrumentation
connectors, trim connectors and lanyard connectors
Connects to 8 pin AMP connector engines (8/9.9 HP FourStrokes and similar).Dual
Engine Application.
KEY SWITCH W/ HARNESS - NON DTS 14 PIN
84-8M0125748 54C26 90.43
WARNING: Cancer - www.P65Warnings.ca.gov
2 foot harness with horn, push to choke key switch, instrumentation connector, trim
connector and lanyard connector
Connects to 8 pin AMP connector engines (8/9.9 HP FourStrokes and similar)
‑Single Engine Application.
84-8M0125749 60C88 101.47
WARNING: Cancer - www.P65Warnings.ca.gov
8 foot harness with horn, push to choke key switch, instrumentation connector, trim
connector and lanyard connector
Connects to 8 pin AMP connector engines (8/9.9 HP FourStrokes and similar)
‑Single Engine Application.
84-8M0125750 63C62 106.03 84-896537K02 119C68 199.47
WARNING: Cancer - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
11 foot harness with horn, push to choke key switch, instrumentation connector, 2 ft. harness (896537A02) with new 14 pin connector for the engine and additional
trim connector and lanyard connector connectors that allow easy quick connect solutions to the rigging process. Included
in this kit is also the new 3 position water‑proof high quality keyswitch. (897716)
Connects to 8 pin AMP connector engines (8/9.9 HP FourStrokes and similar)
‑Single Engine Application. 2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
