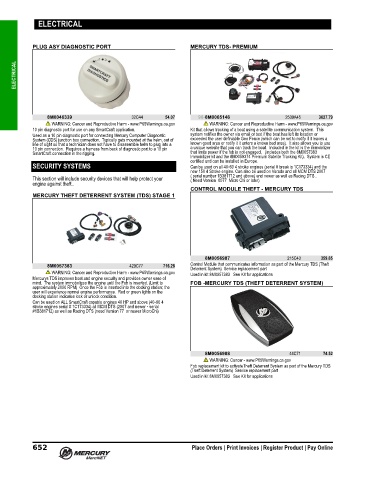

Page 665 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

PLUG ASY DIAGNOSTIC PORT MERCURY TDS- PREMIUM

ELECTRICAL

8M0046339 32C44 54.07 98-8M0065146 2539A45 3627.79
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
10 pin diagnostic port for use on any SmartCraft application. Kit that allows tracking of a boat using a satellite communication system. This
Used as a 10 pin diagnostic port for connecting Mercury Computer Diagnostic system notifies the owner via email or text if the boat has left its location or
System (CDS) junction box connection. Typically gets mounted at the helm, out of exceeded the user definiable Geo Fence (which can be set to notify if it leaves a
line of sight so that a technician does not have to disassemble helm to plug into a known good area or notify it it enters a known bad area). It also allows you to use
10 pin connection. Requires a harness from back of diagnostic port to a 10 pin a unique website that you can track the boat. Included in the kit is the immobilizer
SmartCraft connection in the rigging. that limits power if the fob is not engaged. (includes both the 8M0057383
Immobilizer kit and the 8M0059374 Premium Satelite Tracking Kit). System is CE
certified and can be installed in Europe.
SECURITY SYSTEMS Can be used on all 40‑60 4 stroke engines (serial # break is 1C173334) and the
new 150 4 Stroke engine. Can also be used on Verado and all MCM DTS 2007
( serial number 1B381712 and above) and newer as well as Racing DTS .
This section will include security devices that will help protect your ( Need Version 0077 Micro Chi or later)
engine against theft..
CONTROL MODULE THEFT - MERCURY TDS
MERCURY THEFT DETERRENT SYSTEM (TDS) STAGE 1

8M0056987 215C43 359.05
8M0057383 429C77 716.28 Control Module that communicates information as part of the Mercury TDS (Theft
Deterrent System) Service replacement part
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Used in kit 8M0057383 See Kit for applications
Mercurys TDS improves boat and engine security and provides owner ease of
mind. The system immobolizes the engine until the Fob is inserted. (Limit to FOB -MERCURY TDS (THEFT DETERRENT SYSTEM)
approximately 2000 RPM) Once the Fob is inserted into the docking station; the
user will experience normal engine performance. Red or green lights on the
docking station indicates lock or unlock condition.
Can be used on ALL SmartCraft capable engines 40 HP and above (40‑60 4
stroke engines serial # 1C173334) all MCM DTS (2007 and newer ‑ serial
#1B381712) as well as Racing DTS (need Version 77 or newer MicroChi)

8M0056988 44C71 74.52
WARNING: Cancer - www.P65Warnings.ca.gov
Fob replacement kit to activateTheft Deterrent System as part of the Mercury TDS
(Theft Deterrent System) Service replacement part
Used in kit 8M0057383 See Kit for applications
