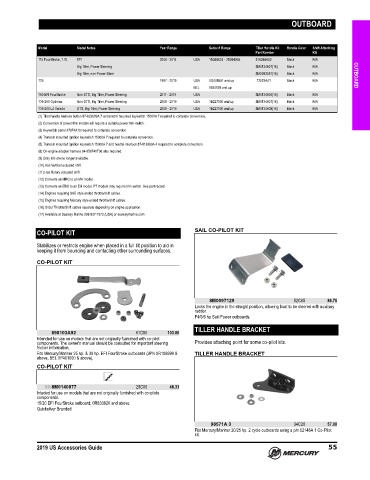

Page 68 - US ACCESSORIES GUIDE (2019)

OUTBOARD

Model Model Notes Year Range Serial # Range Tiller Handle Kit Handle Color Shift Attaching
Part Number Kit
115 FourStroke, 1.7L EFI 2006 - 2014 USA 1B366823 - 2B094955 816366A52 Black N/A
Big Tiller, Power Steering 8M0134607(16) Black N/A
Big Tiller, non-Power Steer 8M0093581(16) Black N/A OUTBOARD
125 1997 - 2019 USA 0G449551 and up 12022A41 Black N/A
BEL 9934128 and up
150 EFI FourStroke Non-DTS, Big Tiller, Power Steering 2011 - 2019 USA 8M0134604(16) Black N/A
135-250 Optimax Non-DTS, Big Tiller, Power Steering 2006 - 2019 USA 1B227000 and up 8M0134607(16) Black N/A
135-200 L4 Verado DTS, Big Tiller, Power Steering 2006 - 2019 USA 1B227000 and up 8M0134609(16) Black N/A
(1) Tiller handle harness button 87-823609A 7 or transom mounted keyswitch 15000A 7 required to complete conversion.
(2) Conversion of power trim models will require a suitable power trim switch.
(3) Keyswitch panel 47974A10 required to complete conversion.
(4) Transom mounted ignition keyswitch 15000A 7 required to complete conversion.
(5) Transom mounted ignition keyswitch 15000A 7 and neutral interlock 87-813960A 4 required to complete conversion.
(8) On-engine adapter harness 84-858740T06 also required.
(9) Gray kits are no longer available.
(10) Has Vertical actuated shift.
(11) Has Rotary actuated shift.
(12) Converts an MRC to an MH model.
(13) Converts an ERC to an EH model. PT models may require trim switch. See part record.
(14) Engines requiring SAE style ended throttle/shift cables.
(15) Engines requiring Mercury style ended throttle/shift cables.
(16) Order Throttle/Shift cables separate depending on engine application.
(17) Available at Seaway Marine 206-937-7373 (USA) or seawaymarine.com

CO-PILOT KIT SAIL CO-PILOT KIT

Stabilizes or restricts engine when placed in a full tilt position to aid in
keeping it from bouncing and contacting other surrounding surfaces.

CO-PILOT KIT

8M0097129 52C05 86.75
Locks the engine in the straight position, allowing boat to be steered with auxiliary
rudder.
F4/5/6 hp Sail‑Power outboards.
TILLER HANDLE BRACKET
898103A92 61C80 103.00
Intended for use on models that are not originally furnished with co‑pilot
components. The owner's manual should be consulted for important steering Provides attaching point for some co‑pilot kits.
friction information.
Fits Mercury/Mariner 25 hp. & 30 hp. EFI FourStroke outboards (JPN 0R106999 & TILLER HANDLE BRACKET
above, BEL 0P401000 & above).
CO-PILOT KIT

98-8M0140877 29C00 48.33
Inteded for use on models that are not originally furnished with co‑pilots
components.
15/20 EFI FourStroke outboard, 0R833820 and above.
Quicksilver Branded

98571A 3 34C20 57.00
Fits Mercury/Mariner 20/25 hp. 2 cycle outboards using a p/n 52148A 1 Co‑Pilot
kit.

2019 US Accessories Guide 55
