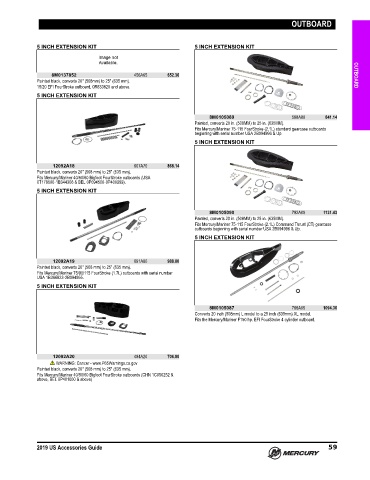

Page 72 - US ACCESSORIES GUIDE (2019)

OUTBOARD

5 INCH EXTENSION KIT 5 INCH EXTENSION KIT

8M0137852 456A65 652.36 OUTBOARD
Painted black, converts 20" (508mm) to 25" (635 mm).
15/20 EFI FourStroke outboard, 0R833820 and above.
5 INCH EXTENSION KIT

8M0105089 588A80 841.14
Painted, converts 20 in. (508MM) to 25 in. (635MM).
Fits Mercury/Mariner 75‑115 FourStroke (2.1L) standard gearcase outboards
beginning with serial number USA 2B094996 & Up.
5 INCH EXTENSION KIT

12092A18 607A70 868.14
Painted black, converts 20" (508 mm) to 25" (635 mm).
Fits Mercury/Mariner 40/50/60 Bigfoot FourStroke outboards (USA
0T178500‑1B344306 & BEL 0P094500‑0P400999).
5 INCH EXTENSION KIT

8M0105090 792A00 1131.43
Painted, converts 20 in. (508MM) to 25 in. (635MM).
Fits Mercury/Mariner 75‑115 FourStroke (2.1L) Command Thrust (CT) gearcase
outboards beginning with serial number USA 2B094996 & Up.
5 INCH EXTENSION KIT

12092A19 691A60 988.00
Painted black, converts 20" (508 mm) to 25" (635 mm).
Fits Mercury/Mariner 75/90/115 FourStroke (1.7L) outboards with serial number
USA 1B366823‑2B094955.
5 INCH EXTENSION KIT

8M0105087 766A05 1094.36
Converts 20 inch (508mm) L model to a 25 inch (635mm) XL model.
Fits the Mercury/Mariner F150 hp. EFI FourStroke 4 cylinder outboard.

12092A20 494A20 706.00
WARNING: Cancer - www.P65Warnings.ca.gov
Painted black, converts 20" (508 mm) to 25" (635 mm).
Fits Mercury/Mariner 40/50/60 Bigfoot FourStroke outboards (CHN 1C050252 &
above, BEL 0P401000 & above)

2019 US Accessories Guide 59
