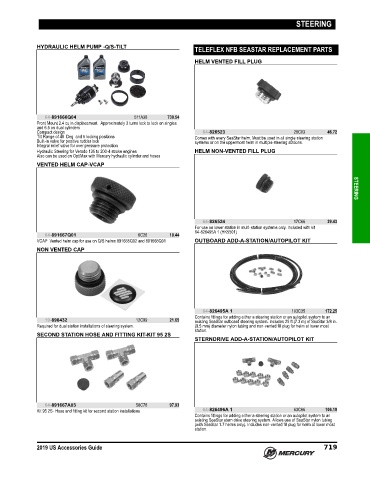

Page 732 - US ACCESSORIES GUIDE (2019)

STEERING

HYDRAULIC HELM PUMP -Q/S-TILT
TELEFLEX NFB SEASTAR REPLACEMENT PARTS
HELM VENTED FILL PLUG

64-891666Q04 511A38 730.54
Front Mount 2.4 cu in displacement. Approximately 3 turns lock to lock on singles
and 6.5 on dual cylinders
Compact design 64-826523 28C03 46.72
Tilt Range of 48 Deg and 5 locking positions Comes with every SeaStar helm. Must be used in all single steering station
Built‑in valve for positive rudder lock systems or on the uppermost helm in multiple steering stations.
Integral relief valve for over pressure protection
Hydraulic Steering for Verado 135 to 200‑4 stroke engines HELM NON-VENTED FILL PLUG
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
VENTED HELM CAP-VCAP STEERING

64-826524 17C66 29.43
For use on lower station in multi‑station systems only. Included with kit
64‑826495A 1 (HK5501)
64-891667Q01 6C26 10.44
VCAP Vented helm cap for use on Q/S helms 891665Q02 and 891666Q01 OUTBOARD ADD-A-STATION/AUTOPILOT KIT
NON VENTED CAP

64-826495A 1 103C35 172.25
Contains fittings for adding either a steering station or an autopilot system to an
19-898432 12C99 21.65 existing SeaStar outboard steering system. Includes 25 ft.(7.3 m) of SeaStar 3/8 in.
Required for dual station installations of steering system. (9.5 mm) diameter nylon tubing and non‑vented fill plug for helm at lower most
station.
SECOND STATION HOSE AND FITTING KIT-KIT 95 2S
STERNDRIVE ADD-A-STATION/AUTOPILOT KIT

64-891667A03 58C76 97.93
Kit 95 2S‑ Hose and fitting kit for second station installations 64-826496A 1 63C66 106.10
Contains fittings for adding either a steering station or an autopilot system to an
existing SeaStar stern drive steering system. Allows use of SeaStar nylon tubing
(with SeaStar 1.7 helms only). Includes non‑vented fill plug for helm at lower most
station.
