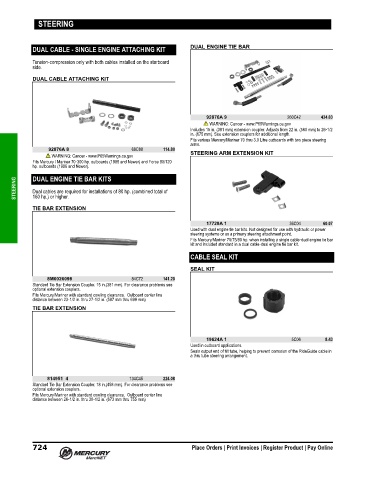

Page 737 - US ACCESSORIES GUIDE (2019)

STEERING

DUAL CABLE - SINGLE ENGINE ATTACHING KIT DUAL ENGINE TIE BAR

Tension‑compression only with both cables installed on the starboard
side.

DUAL CABLE ATTACHING KIT

92876A 9 260C42 434.03
WARNING: Cancer - www.P65Warnings.ca.gov
Includes 15 in. (381 mm) extension coupler. Adjusts from 22 in. (560 mm) to 26‑1/2
in. (675 mm). See extension couplers for additional length.
Fits various Mercury/Mariner 70 thru 3.0 Litre outboards with two piece steering
arms.
92876A 8 68C88 114.80
WARNING: Cancer - www.P65Warnings.ca.gov STEERING ARM EXTENSION KIT
Fits Mercury / Mariner 70‑300 hp. outboards (1985 and Newer) and Force 90/120
hp. outboards (1996 and Newer).
STEERING DUAL ENGINE TIE BAR KITS

Dual cables are required for installations of 80 hp. (combined total of
160 hp.) or higher.
TIE BAR EXTENSION

17729A 1 36C04 60.07
Used with dual engine tie bar kits. Not designed for use with hydraulic or power
steering systems or as a primary steering attachment point.
Fits Mercury/Mariner 70/75/80 hp. when installing a single cable‑dual engine tie bar
kit and included standard in a dual cable‑dual engine tie bar kit.
CABLE SEAL KIT

SEAL KIT
8M0026098 84C72 141.20
Standard Tie Bar Extension Coupler. 15 in.(381 mm). For clearance problems see
optional extension couplers.
Fits Mercury/Mariner with standard cowling clearance. Outboard center line
distance between 23‑1/2 in. thru 27‑1/2 in. (597 mm thru 699 mm)
TIE BAR EXTENSION

19624A 1 5C06 8.43
Used in outboard applications.
Seals output end of tilt tube, helping to prevent corrosion of the RideGuide cable in
a thru tube steering arrangement.

814951 4 134C45 224.08
Standard Tie Bar Extension Coupler. 18 in.(458 mm). For clearance problems see
optional extension couplers.
Fits Mercury/Mariner with standard cowling clearance. Outboard center line
distance between 26‑1/2 in. thru 30‑1/2 in. (673 mm thru 755 mm)
