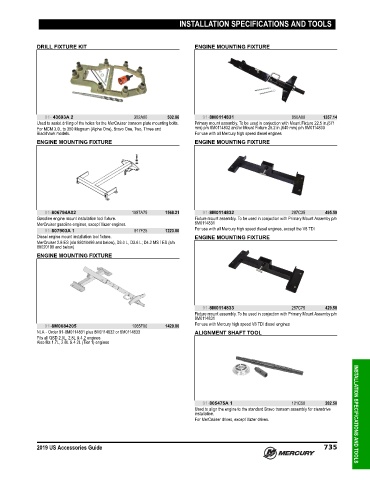

Page 748 - US ACCESSORIES GUIDE (2019)

INSTALLATION SPECIFICATIONS AND TOOLS

DRILL FIXTURE KIT ENGINE MOUNTING FIXTURE

91- 43693A 2 352A00 502.86 91-8M0114831 950A00 1357.14
Used to assist drilling of the holes for the MerCruiser transom plate mounting bolts. Primary mount assembly. To be used in conjuction with Mount Fixture 22.5 in.(571
For MCM 3.0L to 350 Magnum (Alpha One), Bravo One, Two, Three and mm) p/n 8M0114832 and/or Mount Fixture 25.2 in.(640 mm) p/n 8M0114833
Blackhawk models. For use with all Mercury high speed diesel engines
ENGINE MOUNTING FIXTURE ENGINE MOUNTING FIXTURE

91-806794A02 1097A75 1568.21 91-8M0114832 297C35 495.59
Gasoline engine mount installation tool fixture. Fixture mount assembly. To be used in conjuction with Primary Mount Assemby p/n
MerCruiser gasoline engines, except Vazer engines. 8M0114831
91-807903A 1 917F25 1223.00 For use with all Mercury high speed diesel engines, except the V8 TDI
Diesel engine mount installation tool fixture. ENGINE MOUNTING FIXTURE
MerCruiser 2.8 ES (s/n 88010499 and below), D3.0 L, D3.6 L; D4.2 MS / ES (s/n
88020199 and below)
ENGINE MOUNTING FIXTURE

91-8M0114833 257C75 429.58
Fixture mount assembly. To be used in conjuction with Primary Mount Assemby p/n
8M0114831
91-8M0084205 1065F00 1420.00 For use with Mercury high speed V8 TDI diesel engines
NLA ‑ Order 91‑8M0114831 plus 8M0114832 or 8M0114833 ALIGNMENT SHAFT TOOL
Fits all QSD 2.0L, 2.8L & 4.2 engines
Also fits 1.7L, 2.8L & 4.2L (Tier 1) engines

91-805475A 1 121C50 202.50
Used to align the engine to the standard Bravo transom assembly for sterndrive
installation. INSTALLATION SPECIFICATIONS AND TOOLS
For MerCruiser drives, except Vazer drives.

2019 US Accessories Guide 735
