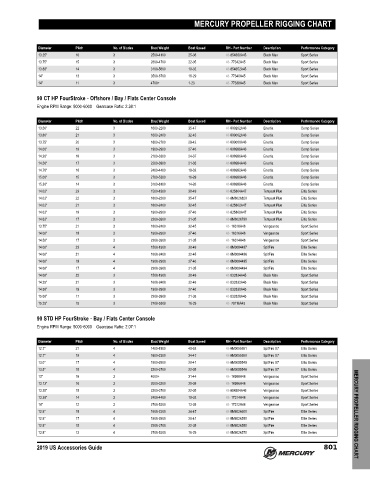

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
13.25” 16 3 2500-4100 25-38 48-854360A45 Black Max Sport Series
13.75” 15 3 2800-4700 22-35 48- 77342A45 Black Max Sport Series
13.88” 14 3 3100-5600 19-32 48-854352A45 Black Max Sport Series
14” 13 3 3500-6700 16-29 48- 77340A45 Black Max Sport Series
14” 11 3 4700+ 1-23 48- 77338A45 Black Max Sport Series

90 CT HP FourStroke ‑ Offshore / Bay / Flats Center Console
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
13.50” 22 3 1600-2200 35-47 48-899202A46 Enertia Comp Series
13.80” 21 3 1600-2400 32-45 48-899002A46 Enertia Comp Series
13.75” 20 3 1800-2700 29-42 48-899000A46 Enertia Comp Series
14.00” 19 3 1900-2900 27-40 48-898998A46 Enertia Comp Series
14.20” 18 3 2100-3300 24-37 48-898996A46 Enertia Comp Series
14.50” 17 3 2200-3900 21-35 48-898994A46 Enertia Comp Series
14.70” 16 3 2400-4400 19-32 48-898992A46 Enertia Comp Series
15.00” 15 3 2700-5300 16-29 48-898990A46 Enertia Comp Series
15.30” 14 3 3100-6100 14-26 48-898988A46 Enertia Comp Series
14.62” 23 3 1500-1900 38-49 48-825864A47 Tempest Plus Elite Series
14.62” 22 3 1600-2200 35-47 48-8M8026820 Tempest Plus Elite Series
14.62” 21 3 1600-2400 32-45 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 1900-2900 27-40 48-825860A47 Tempest Plus Elite Series
14.62” 17 3 2200-3900 21-35 48-8M8026790 Tempest Plus Elite Series
13.75” 21 3 1600-2400 32-45 48- 16318A46 Vengeance Sport Series
14.00” 19 3 1900-2900 27-40 48- 16316A46 Vengeance Sport Series
14.50” 17 3 2200-3900 21-35 48- 16314A46 Vengeance Sport Series
14.00” 23 4 1500-1900 38-49 48-8M0084497 SpitFire Elite Series
14.00” 21 4 1600-2400 32-45 48-8M0084496 SpitFire Elite Series
14.00” 19 4 1900-2900 27-40 48-8M0084495 SpitFire Elite Series
14.00” 17 4 2200-3900 21-35 48-8M0084494 SpitFire Elite Series
14.00” 23 3 1500-1900 38-49 48-832834A45 Black Max Sport Series
14.25” 21 3 1600-2400 32-45 48-832832A45 Black Max Sport Series
14.50” 19 3 1900-2900 27-40 48-832830A45 Black Max Sport Series
15.00” 17 3 2200-3900 21-35 48-832828A45 Black Max Sport Series
15.25” 15 3 2700-5300 16-29 48- 78116A45 Black Max Sport Series

90 STD HP FourStroke ‑ Bay / Flats Center Console
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7” 21 4 1400-1900 40-52 48-8M0055551 SpitFire X7 Elite Series
12.7” 19 4 1600-2300 34-47 48-8M0055550 SpitFire X7 Elite Series
13.0” 17 4 1800-2800 28-41 48-8M0055549 SpitFire X7 Elite Series
13.5" 15 4 2200-3700 22-35 48-8M0055548 SpitFire X7 Elite Series
13” 18 3 4000+ 31-44 48- 16988A46 Vengeance Sport Series
13.13” 16 3 2000-3200 25-38 48- 16986A46 Vengeance Sport Series
13.25” 15 3 2200-3700 22-35 48-854354A46 Vengeance Sport Series
13.38” 14 3 2400-4400 19-32 48- 17314A46 Vengeance Sport Series
14” 12 3 2700-5300 13-26 48- 17312A46 Vengeance Sport Series
12.8” 19 4 1600-2300 34-47 48-8M8026600 SpitFire Elite Series MERCURY PROPELLER RIGGING CHART
12.8” 17 4 1800-2800 28-41 48-8M8026590 SpitFire Elite Series
12.8” 15 4 2200-3700 22-35 48-8M8026580 SpitFire Elite Series
13.8” 13 4 2700-5300 16-29 48-8M8026570 SpitFire Elite Series
