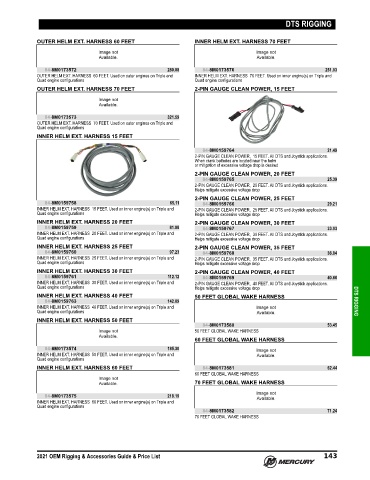

Page 156 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

DTS RIGGING

OUTER HELM EXT. HARNESS 60 FEET INNER HELM EXT. HARNESS 70 FEET

84-8M0173572 280.08 84-8M0173576 251.03
OUTER HELM EXT. HARNESS 60 FEET. Used on outer engines on Triple and INNER HELM EXT. HARNESS 70 FEET. Used on inner engine(s) on Triple and
Quad engine configurations Quad engine configurations
OUTER HELM EXT. HARNESS 70 FEET 2-PIN GAUGE CLEAN POWER, 15 FEET

84-8M0173573 321.59
OUTER HELM EXT. HARNESS 70 FEET. Used on outer engines on Triple and
Quad engine configurations
INNER HELM EXT. HARNESS 15 FEET
84-8M0159764 21.49
2‑PIN GAUGE CLEAN POWER, 15 FEET. All DTS and Joystick applications.
When crank batteries are located near the helm
or mitigation of excessive voltage drop is desired
2-PIN GAUGE CLEAN POWER, 20 FEET
84-8M0159765 25.39
2‑PIN GAUGE CLEAN POWER, 20 FEET. All DTS and Joystick applications.
Helps mitigate excessive voltage drop
2-PIN GAUGE CLEAN POWER, 25 FEET
84-8M0159758 65.11 84-8M0159766 29.21
INNER HELM EXT. HARNESS 15 FEET. Used on inner engine(s) on Triple and 2‑PIN GAUGE CLEAN POWER, 25 FEET. All DTS and Joystick applications.
Quad engine configurations Helps mitigate excessive voltage drop
INNER HELM EXT. HARNESS 20 FEET 2-PIN GAUGE CLEAN POWER, 30 FEET
84-8M0159759 81.88 84-8M0159767 33.03
INNER HELM EXT. HARNESS 20 FEET. Used on inner engine(s) on Triple and 2‑PIN GAUGE CLEAN POWER, 30 FEET. All DTS and Joystick applications.
Quad engine configurations Helps mitigate excessive voltage drop
INNER HELM EXT. HARNESS 25 FEET 2-PIN GAUGE CLEAN POWER, 35 FEET
84-8M0159760 97.23 84-8M0159768 36.84
INNER HELM EXT. HARNESS 25 FEET. Used on inner engine(s) on Triple and 2‑PIN GAUGE CLEAN POWER, 35 FEET. All DTS and Joystick applications.
Quad engine configurations Helps mitigate excessive voltage drop
INNER HELM EXT. HARNESS 30 FEET 2-PIN GAUGE CLEAN POWER, 40 FEET
84-8M0159761 112.12 84-8M0159769 40.66
INNER HELM EXT. HARNESS 30 FEET. Used on inner engine(s) on Triple and 2‑PIN GAUGE CLEAN POWER, 40 FEET. All DTS and Joystick applications.
Quad engine configurations Helps mitigate excessive voltage drop
INNER HELM EXT. HARNESS 40 FEET 50 FEET GLOBAL WAKE HARNESS
84-8M0159763 142.09 DTS RIGGING
INNER HELM EXT. HARNESS 40 FEET. Used on inner engine(s) on Triple and
Quad engine configurations
INNER HELM EXT. HARNESS 50 FEET
84-8M0173580 53.45
50 FEET GLOBAL WAKE HARNESS
60 FEET GLOBAL WAKE HARNESS
84-8M0173574 185.30
INNER HELM EXT. HARNESS 50 FEET. Used on inner engine(s) on Triple and
Quad engine configurations
INNER HELM EXT. HARNESS 60 FEET 84-8M0173581 62.44
60 FEET GLOBAL WAKE HARNESS
70 FEET GLOBAL WAKE HARNESS

84-8M0173575 218.19
INNER HELM EXT. HARNESS 60 FEET. Used on inner engine(s) on Triple and
Quad engine configurations
84-8M0173582 71.24
70 FEET GLOBAL WAKE HARNESS

2021 OEM Rigging & Accessories Guide & Price List 143
