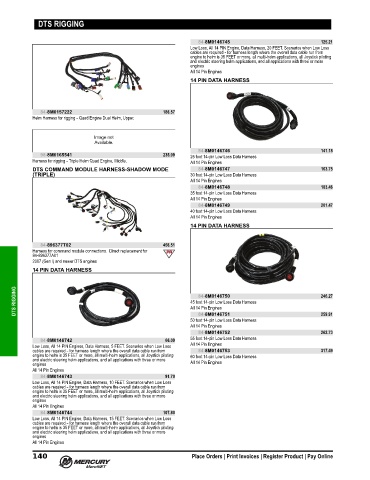

Page 153 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

DTS RIGGING

84-8M0146745 125.21
Low Loss, All 14 PIN Engine, Data Harness, 20 FEET. Scenarios when Low Loss
cables are required ‑ for harness length where the overall data cable run from
engine to helm is 35 FEET or more, all multi‑helm applications, all Joystick piloting
and electric steering helm applications, and all applications with three or more
engines
All 14 Pin Engines
14 PIN DATA HARNESS

84-8M0157222 186.57
Helm Harness for rigging ‑ Quad Engine Dual Helm, Upper.

84-8M0146746 141.18
98-8M0165541 235.99 25 foot 14‑pin Low Loss Data Harness
Harness for rigging ‑ Triple Helm Quad Engine, Middle. All 14 Pin Engines
DTS COMMAND MODULE HARNESS-SHADOW MODE 84-8M0146747 163.75
(TRIPLE) 30 foot 14‑pin Low Loss Data Harness
All 14 Pin Engines
84-8M0146748 183.46
35 foot 14‑pin Low Loss Data Harness
All 14 Pin Engines
84-8M0146749 201.47
40 foot 14‑pin Low Loss Data Harness
All 14 Pin Engines
14 PIN DATA HARNESS

84-896377T02 456.51
Harness for command module connections. Direct replacement for
84‑896377A01
2007 (Gen I) and newer DTS engines
14 PIN DATA HARNESS

DTS RIGGING 45 foot 14‑pin Low Loss Data Harness 246.27
84-8M0146750

All 14 Pin Engines
84-8M0146751
50 foot 14‑pin Low Loss Data Harness 259.91
All 14 Pin Engines
84-8M0146752 262.73
84-8M0146742 66.09 55 foot 14‑pin Low Loss Data Harness
Low Loss, All 14 PIN Engines, Data Harness, 5 FEET. Scenarios when Low Loss All 14 Pin Engines
cables are required ‑ for harness length where the overall data cable run from 84-8M0146753 317.49
engine to helm is 35 FEET or more, all multi‑helm applications, all Joystick piloting 60 foot 14‑pin Low Loss Data Harness
and electric steering helm applications, and all applications with three or more
engines All 14 Pin Engines
All 14 Pin Engines
84-8M0146743 91.70
Low Loss, All 14 PIN Engine, Data Harness, 10 FEET. Scenarios when Low Loss
cables are required ‑ for harness length where the overall data cable run from
engine to helm is 35 FEET or more, all multi‑helm applications, all Joystick piloting
and electric steering helm applications, and all applications with three or more
engines
All 14 Pin Engines
84-8M0146744 107.80
Low Loss, All 14 PIN Engine, Data Harness, 15 FEET. Scenarios when Low Loss
cables are required ‑ for harness length where the overall data cable run from
engine to helm is 35 FEET or more, all multi‑helm applications, all Joystick piloting
and electric steering helm applications, and all applications with three or more
engines
All 14 Pin Engines
