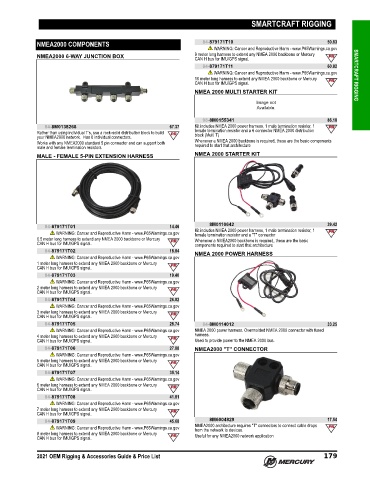

Page 192 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

SMARTCRAFT RIGGING

NMEA2000 COMPONENTS 84-879171T10 50.83
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
NMEA2000 6-WAY JUNCTION BOX 9 meter long harness to extend any NMEA 2000 backbone or Mercury
CAN H bus for IMU/GPS signal.
84-879171T11 60.82
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
10 meter long harness to extend any NMEA 2000 backbone or Mercury SMARTCRAFT RIGGING
CAN H bus for IMU/GPS signal.
NMEA 2000 MULTI STARTER KIT

98-8M0155341 86.18
84-8M0138268 67.37 Kit includes NMEA 2000 power harness, 1 male termination resistor, 1
Rather than using individual T's, use a rock‑solid distribution block to build female termination resistor and a 6 connector NMEA 2000 distribution
block (Multi T)
your NMEA2000 network. Has 6 individual connectors.
Works with any NMEA2000 standard 5 pin connector and can support both Whenever a NMEA 2000 backbone is required, these are the basic components
required to start that architecture
male and female termination resistors.
MALE - FEMALE 5-PIN EXTENSION HARNESS NMEA 2000 STARTER KIT

84-879171T01 14.46 8M0110642 39.42
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Kit includes NMEA 2000 power harness, 1 male termination resistor, 1
female termination resistor and a "T" connector
0.5 meter long harness to extend any NMEA 2000 backbone or Mercury Whenever a NMEA2000 backbone is required, these are the basic
CAN H bus for IMU/GPS signal. components required to start that architecture
84-879171T02 18.84 NMEA 2000 POWER HARNESS
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
1 meter long harness to extend any NMEA 2000 backbone or Mercury
CAN H bus for IMU/GPS signal.
84-879171T03 19.40
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
2 meter long harness to extend any NMEA 2000 backbone or Mercury
CAN H bus for IMU/GPS signal.
84-879171T04 26.02
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
3 meter long harness to extend any NMEA 2000 backbone or Mercury
CAN H bus for IMU/GPS signal.
84-879171T05 28.74 84-8M0114012 33.25
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov NMEA 2000 power harness. Overmolded NMEA 2000 connector with fused
4 meter long harness to extend any NMEA 2000 backbone or Mercury harness.
CAN H bus for IMU/GPS signal. Used to provide power to the NMEA 2000 bus.
84-879171T06 27.88 NMEA2000 "T" CONNECTOR
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
5 meter long harness to extend any NMEA 2000 backbone or Mercury
CAN H bus for IMU/GPS signal.
84-879171T07 35.14
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
6 meter long harness to extend any NMEA 2000 backbone or Mercury
CAN H bus for IMU/GPS signal.
84-879171T08 41.81
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
7 meter long harness to extend any NMEA 2000 backbone or Mercury
CAN H bus for IMU/GPS signal.
84-879171T09 45.68 8M6004829 17.54
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov NMEA2000 architecture requires "T" connectors to connect cable drops
from the network to devices.
8 meter long harness to extend any NMEA 2000 backbone or Mercury
CAN H bus for IMU/GPS signal. Useful for any NMEA2000 network application
2021 OEM Rigging & Accessories Guide & Price List 179
