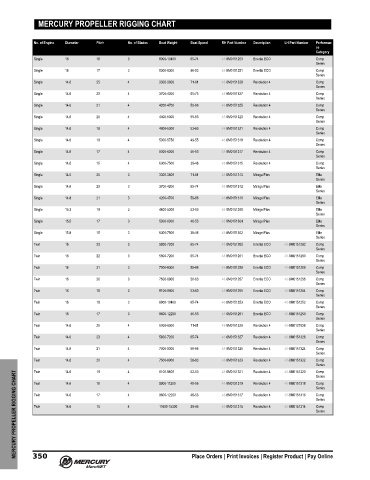

Page 363 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MERCURY PROPELLER RIGGING CHART

No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performan
ce
Category
Single 16 18 3 8900-10400 65-74 48-8M0151253 Enertia ECO Comp
Series
Single 16 17 3 5300-6300 46-53 48-8M0151251 Enertia ECO Comp
Series
Single 14.6 25 4 3300-3800 71-81 48-8M0151329 Revolution 4 Comp
Series
Single 14.6 23 4 3700-4200 65-75 48-8M0151327 Revolution 4 Comp
Series
Single 14.6 21 4 4200-4700 59-66 48-8M0151325 Revolution 4 Comp
Series
Single 14.6 20 4 4400-5000 55-63 48-8M0151323 Revolution 4 Comp
Series
Single 14.6 19 4 4600-5300 53-60 48-8M0151321 Revolution 4 Comp
Series
Single 14.6 18 4 5000-5750 49-55 48-8M0151319 Revolution 4 Comp
Series
Single 14.6 17 4 5300-6300 46-53 48-8M0151317 Revolution 4 Comp
Series
Single 14.6 15 4 6300-7500 39-46 48-8M0151315 Revolution 4 Comp
Series
Single 14.5 25 3 3300-3800 71-81 48-8M0151313 Mirage Plus Elite
Series
Single 14.6 23 3 3700-4200 65-74 48-8M0151312 Mirage Plus Elite
Series
Single 14.8 21 3 4200-4700 59-66 48-8M0151310 Mirage Plus Elite
Series
Single 15.3 19 3 4600-5300 53-60 48-8M0151308 Mirage Plus Elite
Series
Single 15.5 17 3 5300-6300 46-53 48-8M0151304 Mirage Plus Elite
Series
Single 15.8 15 3 6300-7500 39-46 48-8M0151302 Mirage Plus Elite
Series
Twin 16 23 3 5800-7200 65-74 48-8M0151263 Enertia ECO 48-8M0151262 Comp
Series
Twin 16 22 3 5800-7200 65-74 48-8M0151261 Enertia ECO 48-8M0151260 Comp
Series
Twin 16 21 3 7000-8300 59-66 48-8M0151259 Enertia ECO 48-8M0151258 Comp
Series
Twin 16 20 3 7500-8900 56-63 48-8M0151257 Enertia ECO 48-8M0151256 Comp
Series
Twin 16 19 3 8100-9600 53-60 48-8M0151255 Enertia ECO 48-8M0151254 Comp
Series
Twin 16 18 3 8900-10400 65-74 48-8M0151253 Enertia ECO 48-8M0151252 Comp
Series
Twin 16 17 3 9600-12200 46-53 48-8M0151251 Enertia ECO 48-8M0151250 Comp
Series
Twin 14.6 25 4 5000-6300 71-81 48-8M0151329 Revolution 4 48-8M0127038 Comp
Series
Twin 14.6 23 4 5800-7200 65-74 48-8M0151327 Revolution 4 48-8M0151326 Comp
Series
Twin 14.6 21 4 7000-8300 59-66 48-8M0151325 Revolution 4 48-8M0151324 Comp
Series
Twin 14.6 20 4 7500-8900 56-63 48-8M0151323 Revolution 4 48-8M0151322 Comp
Series
19
14.6
Twin
Comp
4
Revolution 4
48-8M0151320
48-8M0151321
8100-9600
53-60
MERCURY PROPELLER RIGGING CHART 350 14.6 17 4 4 9600-12200 46-53 48-8M0151317 Revolution 4 48-8M0151316 Comp
Series
Comp
4
8900-11200
49-56
Twin
14.6
18
48-8M0151319
Revolution 4
48-8M0151318
Series
Twin
Series
Twin
Comp
48-8M0151314
48-8M0151315
11600-15300
39-46
14.6
Revolution 4
15
Series
