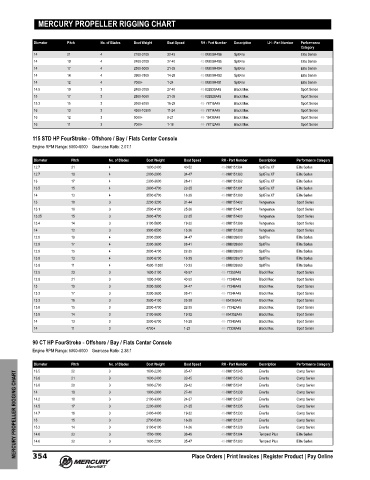

Page 367 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
14 21 4 2100-3100 32-45 48-8M0084496 SpitFire Elite Series
14 19 4 2400-3700 27-40 48-8M0084495 SpitFire Elite Series
14 17 4 2800-5000 21-35 48-8M0084494 SpitFire Elite Series
14 14 4 3900-7800 14-26 48-8M0084493 SpitFire Elite Series
14 12 4 7000+ 1-24 48-8M0084491 SpitFire Elite Series
14.5 19 3 2400-3700 27-40 48-832830A45 Black Max Sport Series
15 17 3 2800-5000 21-35 48-832828A45 Black Max Sport Series
15.3 15 3 3500-6700 16-29 48- 78116A45 Black Max Sport Series
16 13 3 4300-10300 11-24 48- 78114A45 Black Max Sport Series
16 12 3 5000+ 9-21 48- 16436A45 Black Max Sport Series
16 11 3 7000+ 1-18 48- 78112A45 Black Max Sport Series

115 STD HP FourStroke ‑ Offshore / Bay / Flats Center Console
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1800-2400 40-52 48-8M0151364 SpitFire X7 Elite Series
12.7 19 4 2000-2900 34-47 48-8M0151363 SpitFire X7 Elite Series
13 17 4 2300-3600 28-41 48-8M0151362 SpitFire X7 Elite Series
13.5 15 4 2800-4700 22-35 48-8M0151361 SpitFire X7 Elite Series
14 13 4 3500-6700 16-29 48-8M0151360 SpitFire X7 Elite Series
13 18 3 2200-3200 31-44 48-8M0151402 Vengeance Sport Series
13.1 16 3 2500-4100 25-38 48-8M0151401 Vengeance Sport Series
13.25 15 3 2800-4700 22-35 48-8M0151400 Vengeance Sport Series
13.4 14 3 3100-5600 19-32 48-8M0151399 Vengeance Sport Series
14 12 3 3900-8500 13-26 48-8M0151398 Vengeance Sport Series
12.8 19 4 2000-2900 34-47 48-8M8026600 SpitFire Elite Series
12.8 17 4 2300-3600 28-41 48-8M8026590 SpitFire Elite Series
12.8 15 4 2800-4700 22-35 48-8M8026580 SpitFire Elite Series
13.8 13 4 3500-6700 16-29 48-8M8026570 SpitFire Elite Series
13.8 11 4 4500-11500 10-23 48-8M8026560 SpitFire Elite Series
12.5 23 3 1600-2100 45-57 48- 77350A45 Black Max Sport Series
12.8 21 3 1800-2400 40-52 48- 77348A45 Black Max Sport Series
13 19 3 2000-2900 34-47 48- 77346A45 Black Max Sport Series
13.3 17 3 2300-3600 28-41 48- 77344A45 Black Max Sport Series
13.3 16 3 2500-4100 25-38 48-854360A45 Black Max Sport Series
13.8 15 3 2800-4700 22-35 48- 77342A45 Black Max Sport Series
13.9 14 3 3100-5600 19-32 48-854352A45 Black Max Sport Series
14 13 3 3500-6700 16-29 48- 77340A45 Black Max Sport Series
14 11 3 4700+ 1-23 48- 77338A45 Black Max Sport Series

90 CT HP FourStroke ‑ Offshore / Bay / Flats Center Console
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
1600-2200
22
Comp Series
3
Enertia
13.5
48-8M0151245
35-47
MERCURY PROPELLER RIGGING CHART 354 19 3 3 3 3 3 3 3 3 1900-2900 27-40 Place Orders | Print Invoices | Register Product | Pay Online
Comp Series
48-8M0151243
1600-2400
Enertia
3
32-45
21
13.6
3
29-42
1800-2700
Enertia
Comp Series
13.8
20
48-8M0151241
Enertia
48-8M0151239
14
Comp Series
Comp Series
14.2
24-37
18
48-8M0151237
Enertia
2100-3300
Enertia
48-8M0151235
21-35
17
14.5
Comp Series
2200-3900
Enertia
Comp Series
48-8M0151233
16
19-32
2400-4400
14.7
2700-5300
15
15
Enertia
Comp Series
48-8M0151231
16-29
Comp Series
14-26
Enertia
14
3100-6100
48-8M0151229
15.3
Elite Series
14.6
1500-1900
48-8M0151384
38-49
23
Tempest Plus
35-47
Tempest Plus
Elite Series
22
14.6
48-8M0151383
1600-2200
