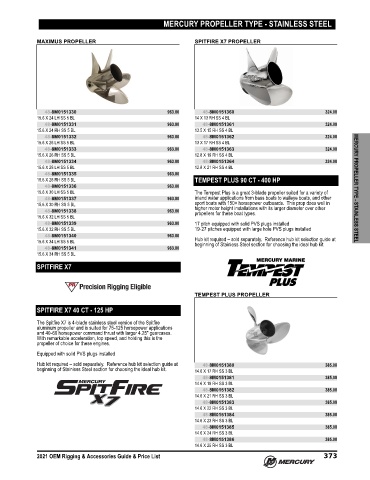

Page 386 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MERCURY PROPELLER TYPE - STAINLESS STEEL

MAXIMUS PROPELLER SPITFIRE X7 PROPELLER

48-8M0151330 963.00 48-8M0151360 324.00
15.6 X 24 LH SS 5 BL 14 X 13 RH SS 4 BL
48-8M0151331 963.00 48-8M0151361 324.00
15.6 X 24 RH SS 5 BL 13.5 X 15 RH SS 4 BL
48-8M0151332 963.00 48-8M0151362 324.00
15.6 X 26 LH SS 5 BL 13 X 17 RH SS 4 BL
48-8M0151333 963.00 48-8M0151363 324.00
15.6 X 26 RH SS 5 BL 12.8 X 19 RH SS 4 BL
48-8M0151334 963.00 48-8M0151364 324.00
15.6 X 28 LH SS 5 BL 12.8 X 21 RH SS 4 BL
48-8M0151335 963.00
15.6 X 28 RH SS 5 BL TEMPEST PLUS 90 CT - 400 HP
48-8M0151336 963.00 MERCURY PROPELLER TYPE - STAINLESS STEEL
15.6 X 30 LH SS 5 BL The Tempest Plus is a great 3‑blade propeller suited for a variety of
48-8M0151337 963.00 inland water applications from bass boats to walleye boats, and other
15.6 X 30 RH SS 5 BL sport boats with 150+ horsepower outboards. This prop does well in
higher motor height installations with its larger diameter over other
48-8M0151338 963.00 propellers for these boat types.
15.6 X 32 LH SS 5 BL
48-8M0151339 963.00 17 pitch equipped with solid PVS plugs installed
15.6 X 32 RH SS 5 BL 19‑27 pitches equipped with large hole PVS plugs installed
48-8M0151340 963.00
15.6 X 34 LH SS 5 BL Hub kit required – sold separately. Reference hub kit selection guide at
beginning of Stainless Steel section for choosing the ideal hub kit.
48-8M0151341 963.00
15.6 X 34 RH SS 5 BL
SPITFIRE X7

TEMPEST PLUS PROPELLER

SPITFIRE X7 40 CT - 125 HP

The Spitfire X7 is 4‑blade stainless steel version of the Spitfire
aluminum propeller and is suited for 75‑125 horsepower applications
and 40‑60 horsepower command thrust with larger 4.25" gearcases.
With remarkable acceleration, top speed, and holding this is the
propeller of choice for these engines.
Equipped with solid PVS plugs installed
Hub kit required – sold separately. Reference hub kit selection guide at 48-8M0151380 385.00
beginning of Stainless Steel section for choosing the ideal hub kit. 14.6 X 17 RH SS 3 BL
48-8M0151381 385.00
14.6 X 19 RH SS 3 BL
48-8M0151382 385.00
14.6 X 21 RH SS 3 BL
48-8M0151383 385.00
14.6 X 22 RH SS 3 BL
48-8M0151384 385.00
14.6 X 23 RH SS 3 BL
48-8M0151385 385.00
14.6 X 24 RH SS 3 BL
48-8M0151386 385.00
14.6 X 25 RH SS 3 BL
2021 OEM Rigging & Accessories Guide & Price List 373
