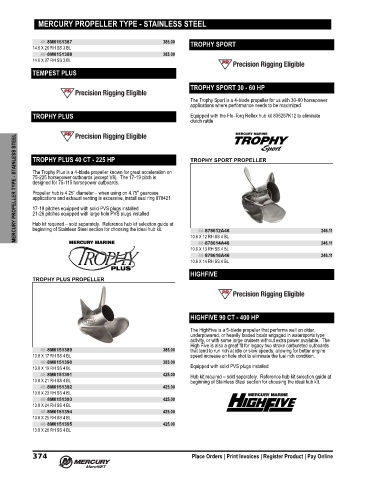

Page 387 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MERCURY PROPELLER TYPE - STAINLESS STEEL

48-8M0151387 385.00 TROPHY SPORT
14.6 X 26 RH SS 3 BL
48-8M0151388 385.00
14.6 X 27 RH SS 3 BL
TEMPEST PLUS

TROPHY SPORT 30 - 60 HP

The Trophy Sport is a 4‑blade propeller for us with 30‑60 horsepower
applications where performance needs to be maximized.
TROPHY PLUS Equipped with the Flo‑Torq Reflex hub kit 835257K12 to eliminate
clutch rattle

MERCURY PROPELLER TYPE - STAINLESS STEEL

TROPHY PLUS 40 CT - 225 HP TROPHY SPORT PROPELLER

The Trophy Plus is a 4‑blade propeller known for great acceleration on
75‑225 horsepower outboards (except V8). The 17‑19 pitch is
designed for 75‑115 horsepower outboards.
Propeller hub is 4.25" diameter – when using on 4.75" gearcase
applications and exhaust venting is excessive, install seal ring 878421.
17‑19 pitches equipped with solid PVS plugs installed
21‑26 pitches equipped with large hole PVS plugs installed

Hub kit required – sold separately. Reference hub kit selection guide at
beginning of Stainless Steel section for choosing the ideal hub kit. 48-878612A46 246.11
10.6 X 12 RH SS 4 BL
48-878614A46 246.11
10.6 X 13 RH SS 4 BL
48-878616A46 246.11
10.6 X 14 RH SS 4 BL

HIGHFIVE
TROPHY PLUS PROPELLER

HIGHFIVE 90 CT - 400 HP
The HighFive is a 5‑blade propeller that performs well on older,
underpowered, or heavily loaded boats engaged in watersports type
activity, or with some large cruisers without extra power available. The
High Five is also a great fit for legacy two stroke carbureted outboards
48-8M0151389 385.00 that tend to run rich at idle or slow speeds, allowing for better engine
13.8 X 17 RH SS 4 BL speed increase on hole shot to eliminate the fuel rich condition.
48-8M0151390 385.00
13.8 X 19 RH SS 4 BL Equipped with solid PVS plugs installed
48-8M0151391 425.00 Hub kit required – sold separately. Reference hub kit selection guide at
13.8 X 21 RH SS 4 BL beginning of Stainless Steel section for choosing the ideal hub kit.
48-8M0151392 425.00
13.8 X 23 RH SS 4 BL
48-8M0151393 425.00
13.8 X 24 RH SS 4 BL
48-8M0151394 425.00
13.8 X 25 RH SS 4 BL
48-8M0151395 425.00
13.8 X 26 RH SS 4 BL

374 Place Orders | Print Invoices | Register Product | Pay Online
