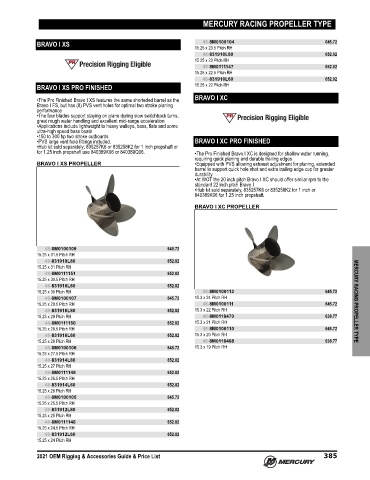

Page 398 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MERCURY RACING PROPELLER TYPE

BRAVO I XS 48-8M0100104 645.72
15.25 x 23.5 Pitch RH
48-831910L80 652.02
15.25 x 23 Pitch RH
48-8M0111147 652.02
15.25 x 22.5 Pitch RH
48-831910L60 652.02
BRAVO I XS PRO FINISHED 15.25 x 22 Pitch RH
BRAVO I XC
•The Pro Finished Bravo I XS features the same shorteded barrel as the
Bravo I FS, but has (8) PVS vent holes for optimal two stroke planing
performance
•The four blades support staying on plane during slow switchback turns,
great rough water handling and excellent mid‑range acceleration
•Applications include lightweight to heavy walleye, bass, flats and some
ultra‑high speed bass boats
•150 to 300 hp two stroke outboards
•PVS large vent hole fittings included. BRAVO I XC PRO FINISHED
•Hub kit sold separately; 835257K6 or 835258K2 for 1 inch propshaft or
for 1.25 inch propshaft use 840389K06 or 840389Q06. •The Pro Finished Bravo I XC is designed for shallow water running,
requiring quick planing and durable trailing edges
BRAVO I XS PROPELLER •Equipped with PVS allowing exhaust adjustment for planing, extended
barrel to support quick hole shot and extra trailing edge cup for greater
durability
•At WOT the 20 inch pitch Bravo I XC should offer similar rpm to the
standard 22 inch pitch Bravo I
•Hub kit sold separately, 835257K6 or 835258K2 for 1 inch or
840389K06 for 1.25 inch propshaft.
BRAVO I XC PROPELLER

48-8M0100109 645.72
15.25 x 31.5 Pitch RH
48-831918L80 652.02
15.25 x 31 Pitch RH
48-8M0111151 652.02
15.25 x 30.5 Pitch RH
48-831918L60 652.02
15.25 x 30 Pitch RH 48-8M0100112 645.72
48-8M0100107 645.72 15.3 x 24 Pitch RH
15.25 x 29.5 Pitch RH 48-8M0100111 645.72 MERCURY RACING PROPELLER TYPE
48-831916L80 652.02 15.3 x 22 Pitch RH
15.25 x 29 Pitch RH 48-8M0118470 638.77
48-8M0111150 652.02 15.3 x 21 Pitch RH
15.25 x 28.5 Pitch RH 48-8M0100110 645.72
48-831916L60 652.02 15.3 x 20 Pitch RH
15.25 x 28 Pitch RH 48-8M0118468 638.77
48-8M0100106 645.72 15.3 x 19 Pitch RH
15.25 x 27.5 Pitch RH
48-831914L80 652.02
15.25 x 27 Pitch RH
48-8M0111149 652.02
15.25 x 26.5 Pitch RH
48-831914L60 652.02
15.25 x 26 Pitch RH
48-8M0100105 645.72
15.25 x 25.5 Pitch RH
48-831912L80 652.02
15.25 x 25 Pitch RH
48-8M0111148 652.02
15.25 x 24.5 Pitch RH
48-831912L60 652.02
15.25 x 24 Pitch RH

2021 OEM Rigging & Accessories Guide & Price List 385
