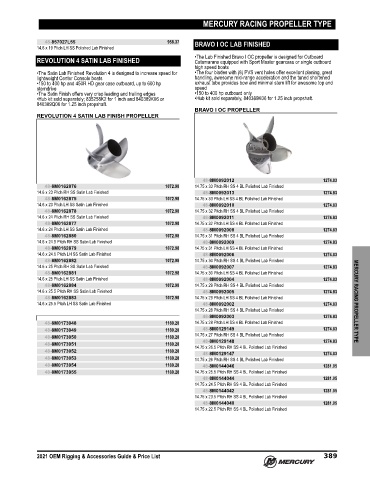

Page 402 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MERCURY RACING PROPELLER TYPE

48-857027L55 958.37 BRAVO I OC LAB FINISHED
14.6 x 19 Pitch LH SS Polished Lab Finished

REVOLUTION 4 SATIN LAB FINISHED •The Lab Finished Bravo I OC propeller is designed for Outboard
Catamarans equipped with Sport Master gearcase or single outboard
high speed boats
•The Satin Lab Finished Revolution 4 is designed to increase speed for •The four blades with (8) PVS vent holes offer excellant planing, great
lightweight Center Console boats handling, awesome mid‑range acceleration and the tuned shortened
•150 to 400 hp and 450R HD gear case outboard, up to 600 hp exhaust tube provides bow and minimal stern lift for awesome top end
sterndrive speed
•The Satin Finish offers very crisp leading and trailing edges •150 to 400 hp outboard only
•Hub kit sold separately; 835258K2 for 1 inch and 840389K06 or •Hub kit sold separately, 840389K06 for 1.25 inch propshaft.
840389Q06 for 1.25 inch propshaft.
BRAVO I OC PROPELLER
REVOLUTION 4 SATIN LAB FINISH PROPELLER

48-8M0092012 1274.83
48-8M0162876 1072.98 14.75 x 33 Pitch RH SS 4 BL Polished Lab Finished
14.6 x 23 Pitch RH SS Satin Lab Finished 48-8M0092013 1274.83
48-8M0162875 1072.98 14.75 x 33 Pitch LH SS 4 BL Polished Lab Finished
14.6 x 23 Pitch LH SS Satin Lab Finished 48-8M0092010 1274.83
48-8M0162878 1072.98 14.75 x 32 Pitch RH SS 4 BL Polished Lab Finished
14.6 x 24 Pitch RH SS Satin Lab Finished 48-8M0092011 1274.83
48-8M0162877 1072.98 14.75 x 32 Pitch LH SS 4 BL Polished Lab Finished
14.6 x 24 Pitch LH SS Satin Lab Finished 48-8M0092008 1274.83
48-8M0162880 1072.98 14.75 x 31 Pitch RH SS 4 BL Polished Lab Finished
14.6 x 24.5 Pitch RH SS Satin Lab Finished 48-8M0092009 1274.83
48-8M0162879 1072.98 14.75 x 31 Pitch LH SS 4 BL Polished Lab Finished
14.6 x 24.5 Pitch LH SS Satin Lab Finished 48-8M0092006 1274.83
48-8M0162882 1072.98 14.75 x 30 Pitch RH SS 4 BL Polished Lab Finished
14.6 x 25 Pitch RH SS Satin Lab Finished 48-8M0092007 1274.83
48-8M0162881 1072.98 14.75 x 30 Pitch LH SS 4 BL Polished Lab Finished
14.6 x 25 Pitch LH SS Satin Lab Finished 48-8M0092004 1274.83
48-8M0162884 1072.98 14.75 x 29 Pitch RH SS 4 BL Polished Lab Finished
14.6 x 25.5 Pitch RH SS Satin Lab Finished 48-8M0092005 1274.83
48-8M0162883 1072.98 14.75 x 29 Pitch LH SS 4 BL Polished Lab Finished
14.6 x 25.5 Pitch LH SS Satin Lab Finished 48-8M0092002 1274.83 MERCURY RACING PROPELLER TYPE
14.75 x 28 Pitch RH SS 4 BL Polished Lab Finished
48-8M0092003 1274.83
48-8M0173948 1180.28 14.75 x 28 Pitch LH SS 4 BL Polished Lab Finished
48-8M0173949 1180.28 48-8M0129149 1274.83
14.75 x 27 Pitch RH SS 4 BL Polished Lab Finished
48-8M0173950 1180.28
48-8M0129148
48-8M0173951 1180.28 14.75 x 26.5 Pitch RH SS 4 BL Polished Lab Finished 1274.83
48-8M0173952 1180.28 48-8M0129147 1274.83
48-8M0173953 1180.28 14.75 x 26 Pitch RH SS 4 BL Polished Lab Finished
48-8M0173954 1180.28 48-8M0144046 1281.05
48-8M0173955 1180.28 14.75 x 25.5 Pitch RH SS 4 BL Polished Lab Finished
48-8M0144044 1281.05
14.75 x 24.5 Pitch RH SS 4 BL Polished Lab Finished
48-8M0144042 1281.05
14.75 x 23.5 Pitch RH SS 4 BL Polished Lab Finished
48-8M0144040 1281.05
14.75 x 22.5 Pitch RH SS 4 BL Polished Lab Finished

2021 OEM Rigging & Accessories Guide & Price List 389
