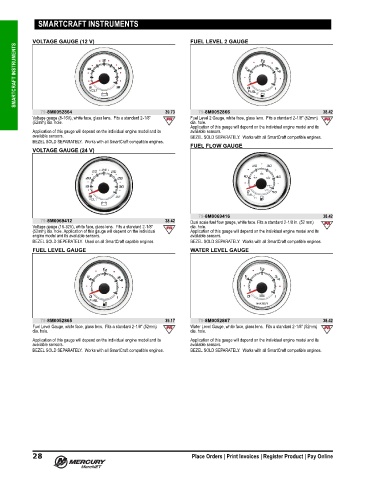

P. 41

SMARTCRAFT INSTRUMENTS


            VOLTAGE GAUGE (12 V)                                FUEL LEVEL 2 GAUGE
      SMARTCRAFT INSTRUMENTS











              79-8M0052864                              39.73      79-8M0052866                             38.42
            Voltage gauge (8‑16V), white face, glass lens.  Fits a standard 2‑1/8"  Fuel Level 2 Gauge, white face, glass lens.  Fits a standard 2‑1/8" (52mm)
            (52mm) dia. hole.                                   dia. hole.
                                                                Application of this gauge will depend on the individual engine model and its
            Application of this gauge will depend on the individual engine model and its  available sensors.
            available sensors.                                  BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.
            BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.
                                                                FUEL FLOW GAUGE
            VOLTAGE GAUGE (24 V)











                                                                   79-8M0069416                             38.42
              79-8M0069412                              38.42   Dual scale fuel flow gauge, white face. Fits a standard 2‑1/8 in. (52 mm)
            Voltage gauge (16‑32V), white face, glass lens.  Fits a standard 2‑1/8"  dia. hole.
            (52mm) dia. hole. Application of this gauge will depend on the individual  Application of this gauge will depend on the individual engine model and its
            engine model and its available sensors.             available sensors.
            BEZEL SOLD SEPERATELY.  Used on all SmartCraft capable engines  BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.
            FUEL LEVEL GAUGE                                    WATER LEVEL GAUGE













              79-8M0052865                              39.17      79-8M0052867                             38.42
            Fuel Level Gauge, white face, glass lens.  Fits a standard 2‑1/8" (52mm)  Water Level Gauge, white face, glass lens.  Fits a standard 2‑1/8" (52mm)
            dia. hole.                                          dia. hole.
            Application of this gauge will depend on the individual engine model and its  Application of this gauge will depend on the individual engine model and its
            available sensors.                                  available sensors.
            BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.  BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.
