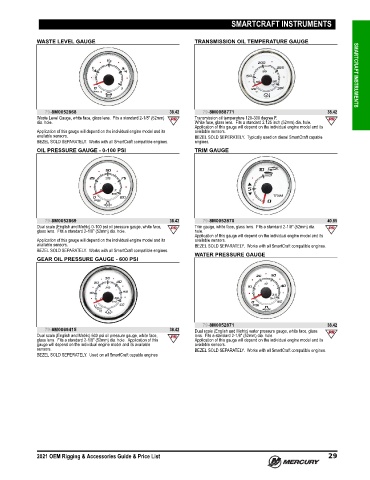

Page 42 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477
P. 42

SMARTCRAFT INSTRUMENTS


             WASTE LEVEL GAUGE                                   TRANSMISSION OIL TEMPERATURE GAUGE                   SMARTCRAFT INSTRUMENTS












                79-8M0052868                             38.42      79-8M0088771                             38.42
             Waste Level Gauge, white face, glass lens.  Fits a standard 2‑1/8" (52mm)  Transmission oil temperature 120‑300 degree F.
             dia. hole.                                          White face, glass lens.  Fits a standard 2.125 inch (52mm) dia. hole.
                                                                 Application of this gauge will depend on the individual engine model and its
             Application of this gauge will depend on the individual engine model and its  available sensors.
             available sensors.                                  BEZEL SOLD SEPERATELY.  Typically used on diesel SmartCraft capable
             BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.  engines.
             OIL PRESSURE GAUGE - 0-100 PSI                      TRIM GAUGE













                79-8M0052869                             38.42      79-8M0052870                             40.85
             Dual scale (English and Metric) 0‑100 psi oil pressure gauge, white face,  Trim gauge, white face, glass lens.  Fits a standard 2‑1/8" (52mm) dia.
             glass lens.  Fits a standard 2‑1/8" (52mm) dia. hole.  hole.
                                                                 Application of this gauge will depend on the individual engine model and its
             Application of this gauge will depend on the individual engine model and its  available sensors.
             available sensors.                                  BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.
             BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.
                                                                 WATER PRESSURE GAUGE
             GEAR OIL PRESSURE GAUGE - 600 PSI











                                                                    79-8M0052871                             38.42
                79-8M0069415                             38.42   Dual scale (English and Metric) water pressure gauge, white face, glass
             Dual scale (English and Metric) 600 psi oil pressure gauge, white face,  lens.  Fits a standard 2‑1/8" (52mm) dia. hole.
             glass lens.  Fits a standard 2‑1/8" (52mm) dia. hole.  Application of this  Application of this gauge will depend on the individual engine model and its
             gauge will depend on the individual engine model and its available  available sensors.
             sensors.                                            BEZEL SOLD SEPARATELY.  Works with all SmartCraft compatible engines.
             BEZEL SOLD SEPERATELY.  Used on all SmartCraft capable engines


















             2021 OEM Rigging & Accessories Guide & Price List                                                29
