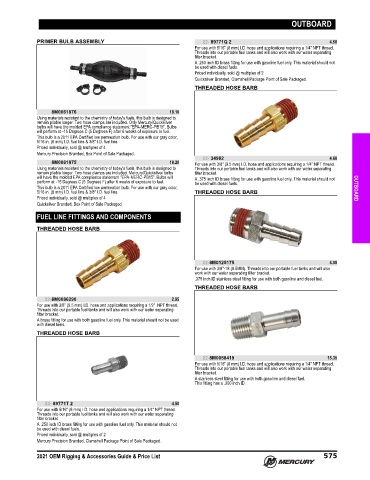

Page 588 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

OUTBOARD

PRIMER BULB ASSEMBLY 22- 89771Q 2 4.50
For use with 5/16" (8 mm) I.D. hose and applications requiring a 1/4" NPT thread.
Threads into our portable fuel tanks and will also work with our water separating
filter bracket.
A .250 inch ID brass fitting for use with gasoline fuel only. This material should not
be used with diesel fuels.
Priced individually, sold @ multiples of 2
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
THREADED HOSE BARB

8M0061876 18.10
Using materials resistant to the chemistry of today's fuels, this bulb is designed to
remain pliable longer. Two hose clamps are included. Only Mercury/Quicksilver
bulbs will have the molded EPA compliance statement "EPA‑MERC‑PB15". Bulbs
will perform at ‑15 Degrees C (5 Degrees F) after 6 weeks of exposure to fuel.
This bulb is a 2011 EPA Certified low permeation bulb. For use with our gray color,
5/16 in. (8 mm) I.D. fuel line & 3/8" I.D. fuel line.
Priced individually, sold @ multiples of 4
Mercury Precision Branded, Box Point of Sale Packaged.
22- 34982 4.60
8M0061875 18.20 For use with 3/8" (9.5 mm) I.D. hose and applications requiring a 1/4" NPT thread.
Using materials resistant to the chemistry of today's fuels, this bulb is designed to Threads into our portable fuel tanks and will also work with our water separating
remain pliable longer. Two hose clamps are included. Mercury/Quicksilver bulbs filter bracket.
will have the molded EPA compliance statement "EPA‑MERC‑PB15". Bulbs will A .375 inch ID brass fitting for use with gasoline fuel only. This material should not
perform at ‑15 Degrees C (5 Degrees F) after 6 weeks of exposure to fuel. be used with diesel fuels.
This bulb is a 2011 EPA Certified low permeation bulb. For use with our gray color, OUTBOARD
5/16 in. (8 mm) I.D. fuel line & 3/8" I.D. fuel line. THREADED HOSE BARB
Priced individually, sold @ multiples of 4
Quicksilver Branded, Box Point of Sale Packaged.
FUEL LINE FITTINGS AND COMPONENTS

THREADED HOSE BARB

22-8M0125175 4.00
For use with 3/8"‑18 (9.5MM). Threads into our portable fuel tanks and will also
work with our water separating filter bracket.
.375 inch ID stainless steel fitting for use with both gasoline and diesel fuel.
THREADED HOSE BARB
22-8M0086290 2.95
For use with 3/8" (9.5 mm) I.D. hose and applications requiring a 1/2" NPT thread.
Threads into our portable fuel tanks and will also work with our water separating
filter bracket.
A brass fitting for use with both gasoline fuel only. This material should not be used
with diesel fuels.
THREADED HOSE BARB

22-8M0058419 15.35
For use with 5/16" (8 mm) I.D. hose and applications requiring a 1/4" NPT thread.
Threads into our portable fuel tanks and will also work with our water separating
filter bracket.
A stainless steel fitting for use with both gasoline and diesel fuel.
This fitting has a .300 inch ID.

22- 89771T 2 4.50
For use with 5/16" (8 mm) I.D. hose and applications requiring a 1/4" NPT thread.
Threads into our portable fuel tanks and will also work with our water separating
filter bracket.
A .250 inch ID brass fitting for use with gasoline fuel only. This material should not
be used with diesel fuels.
Priced individually, sold @ multiples of 2
Mercury Precision Branded, Clamshell Package Point of Sale Packaged.

2021 OEM Rigging & Accessories Guide & Price List 575
