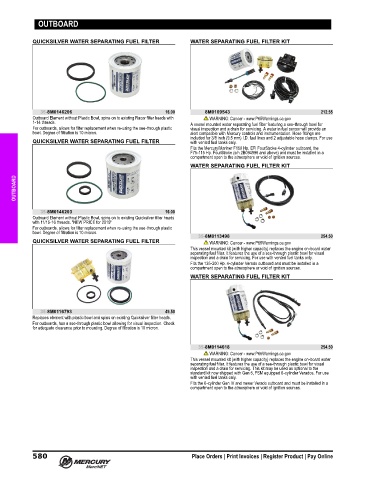

Page 593 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

OUTBOARD

QUICKSILVER WATER SEPARATING FUEL FILTER WATER SEPARATING FUEL FILTER KIT

35-8M0146206 16.00 8M0109543 212.55
Outboard Element without Plastic Bowl, spins on to existing Racor filter heads with WARNING: Cancer - www.P65Warnings.ca.gov
1‑14 threads. A vessel mounted water separating fuel filter featuring a see‑through bowl for
For outboards, allows for filter replacement when re‑using the see‑through plastic visual inspection and a drain for servicing. A water in fuel sensor will provide an
bowl. Degree of filtration is 10 micron. alert compatible with Mercury controls and instrumentation. Hose fittings are
included for 3/8 inch (9.5 mm) I.D. fuel lines and 2 adjustable hose clamps. For use
QUICKSILVER WATER SEPARATING FUEL FILTER with vented fuel tanks only.
Fits the Mercury/Mariner F150 Hp. EFI FourStroke 4‑cylinder outboard, the
F75‑115 Hp. FourStroke (s/n 2B094996 and above) and must be installed in a
compartment open to the atmosphere or void of ignition sources.
WATER SEPARATING FUEL FILTER KIT
OUTBOARD

35-8M0146203 16.00
Outboard Element without Plastic Bowl, spins on to existing Quicksilver filter heads
with 11/16‑16 threads. "NEW PRICE for 2019"
For outboards, allows for filter replacement when re‑using the see‑through plastic
bowl. Degree of filtration is 10 micron.
35-8M0113498 254.50
QUICKSILVER WATER SEPARATING FUEL FILTER WARNING: Cancer - www.P65Warnings.ca.gov
This vessel mounted kit (with higher capacity) replaces the engine on‑board water
separating fuel filter. It features the use of a see‑through plastic bowl for visual
inspection and a drain for servicing. For use with vented fuel tanks only.
Fits the 135‑200 Hp. 4‑cylinder Verado outboard and must be installed in a
compartment open to the atmosphere or void of ignition sources.
WATER SEPARATING FUEL FILTER KIT

35-8M0116793 49.50
Replaces element with plastic bowl and spins on existing Quicksilver filter heads.
For outboards, has a see‑through plastic bowl allowing for visual inspection. Check
for adequate clearance prior to mounting. Degree of filtration is 10 micron.

35-8M0114618 254.50
WARNING: Cancer - www.P65Warnings.ca.gov
This vessel mounted kit (with higher capacity) replaces the engine on‑board water
separating fuel filter. It features the use of a see‑through plastic bowl for visual
inspection and a drain for servicing. This kit may be used as optional to the
standard kit now shipped with Gen 5, FSM equipped 6‑cylinder Verados. For use
with vented fuel tanks only.
Fits the 6‑cylinder Gen IV and newer Verado outboard and must be installed in a
compartment open to the atmosphere or void of ignition sources.
