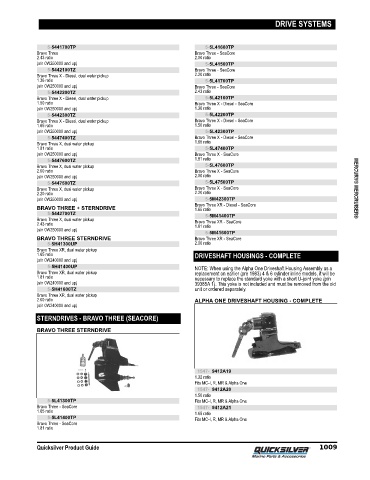

P. 1018
DRIVE SYSTEMS
5-5441700TP 5-5L41600TP
Bravo Three Bravo Three ‑ SeaCore
2.43 ratio 2.00 ratio
(s/n 0W250000 and up) 5-5L41500TP
5-5442100TZ Bravo Three ‑ SeaCore
Bravo Three X ‑ Diesel, dual water pickup 2.20 ratio
1.36 ratio 5-5L41700TP
(s/n 0W250000 and up) Bravo Three ‑ SeaCore
5-5442200TZ 2.43 ratio
Bravo Three X ‑ Diesel, dual water pickup 5-5L42100TP
1.50 ratio Bravo Three X ‑ Diesel ‑ SeaCore
(s/n 0W250000 and up) 1.36 ratio
5-5442300TZ 5-5L42200TP
Bravo Three X ‑ Diesel, dual water pickup Bravo Three X ‑ Diesel ‑ SeaCore
1.65 ratio 1.50 ratio
(s/n 0W250000 and up) 5-5L42300TP
5-5447400TZ Bravo Three X ‑ Diesel ‑ SeaCore
Bravo Three X, dual water pickup 1.65 ratio
1.81 ratio 5-5L47400TP
(s/n 0W250000 and up) Bravo Three X ‑ SeaCore
5-5447600TZ 1.81 ratio
Bravo Three X, dual water pickup 5-5L47600TP
2.00 ratio Bravo Three X ‑ SeaCore
(s/n 0W250000 and up) 2.00 ratio
5-5447500TZ 5-5L47500TP
Bravo Three X, dual water pickup Bravo Three X ‑ SeaCore MERCURY® MERCRUISER®
2.20 ratio 2.20 ratio
(s/n 0W250000 and up) 5-5M42300TP
Bravo Three XR ‑ Diesel ‑ SeaCore
BRAVO THREE + STERNDRIVE 1.65 ratio
5-5442700TZ 5-5M41400TP
Bravo Three X, dual water pickup Bravo Three XR ‑ SeaCore
2.43 ratio 1.81 ratio
(s/n 0W250000 and up)
5-5M41600TP
BRAVO THREE STERNDRIVE Bravo Three XR ‑ SeaCore
5-5H41300UP 2.00 ratio
Bravo Three XR, dual water pickup
1.65 ratio DRIVESHAFT HOUSINGS - COMPLETE
(s/n 0W240000 and up)
5-5H41400UP NOTE: When using the Alpha One Driveshaft Housing Assembly as a
Bravo Three XR, dual water pickup replacement on earlier (pre 1983) 4 & 6 cylinder inline models, it will be
1.81 ratio necessary to replace the standard yoke with a short U‑joint yoke (p/n
(s/n 0W240000 and up) 39385A 1). This yoke is not included and must be removed from the old
5-5H41600TZ unit or ordered separately.
Bravo Three XR, dual water pickup
2.00 ratio ALPHA ONE DRIVESHAFT HOUSING - COMPLETE
(s/n 0W240000 and up)
STERNDRIVES - BRAVO THREE (SEACORE)
BRAVO THREE STERNDRIVE
1547- 9412A19
1.32 ratio
Fits MC‑I, R, MR & Alpha One
1547- 9412A20
1.50 ratio
5-5L41300TP Fits MC‑I, R, MR & Alpha One
Bravo Three ‑ SeaCore 1547- 9412A21
1.65 ratio 1.65 ratio
5-5L41400TP Fits MC‑I, R, MR & Alpha One
Bravo Three ‑ SeaCore
1.81 ratio
Quicksilver Product Guide 1009
