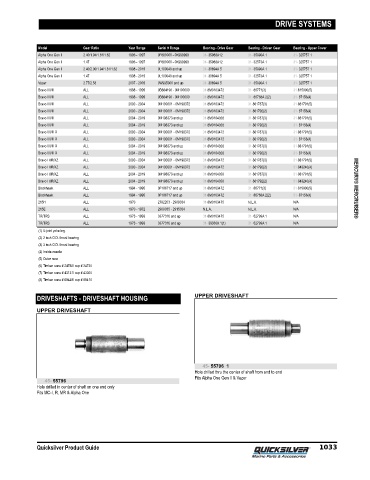

Page 1042 - Quicksilver Product Guide (2020) - 8M0163242

DRIVE SYSTEMS

Model Gear Ratio Year Range Serial # Range Bearing - Drive Gear Bearing - Driven Gear Bearing - Upper Cover
Alpha One Gen II 2.40/1.94/1.81/1.62 1996 - 1997 0F680000 - 0K999999 31- 35988A12 31- 35990A 1 31- 32575T 1
Alpha One Gen II 1.47 1996 - 1997 0F680000 - 0K999999 31- 35988A12 31- 32573A 1 31- 32575T 1
Alpha One Gen II 2.40/2.00/1.94/1.81/1.62 1998 - 2019 0L100040 and up 31- 30894A 5 31- 35990A 1 31- 32575T 1
Alpha One Gen II 1.47 1998 - 2019 0L100040 and up 31- 30894A 5 31- 32573A 1 31- 32575T 1
Vazer 2.77/2.58 2007 - 2009 0W995000 and up 31- 30894A 5 31- 35990A 1 31- 32575T 1
Bravo I/II/III ALL 1988 - 1999 0B664190 - 0M100000 31-8M0103472 31- 86771(3) 31-815900(5)
Bravo I/II/III ALL 1988 - 1999 0B664190 - 0M100000 31-8M0103472 31- 86768A 2(2) 31- 87156(4)
Bravo I/II/III ALL 2000 - 2004 0M100001 - 0M198372 31-8M0103472 31-861787(3) 31-861791(5)
Bravo I/II/III ALL 2000 - 2004 0M100001 - 0M198372 31-8M0103472 31-861792(2) 31- 87156(4)
Bravo I/II/III ALL 2004 - 2019 0M198373 and up 31-8M0104358 31-861787(3) 31-861791(5)
Bravo I/II/III ALL 2004 - 2019 0M198373 and up 31-8M0104358 31-861792(2) 31- 87156(4)
Bravo I/II/III X ALL 2000 - 2004 0M100001 - 0M198372 31-8M0103472 31-861787(3) 31-861791(5)
Bravo I/II/III X ALL 2000 - 2004 0M100001 - 0M198372 31-8M0103472 31-861792(2) 31- 87156(4)
Bravo I/II/III X ALL 2004 - 2019 0M198373 and up 31-8M0104358 31-861787(3) 31-861791(5)
Bravo I/II/III X ALL 2004 - 2019 0M198373 and up 31-8M0104358 31-861792(2) 31- 87156(4)
Bravo I XR/XZ ALL 2000 - 2004 0M100001 - 0M198372 31-8M0103472 31-861787(3) 31-861791(5)
Bravo I XR/XZ ALL 2000 - 2004 0M100001 - 0M198372 31-8M0103472 31-861792(2) 31-843240(4)
Bravo I XR/XZ ALL 2004 - 2019 0M198373 and up 31-8M0104358 31-861787(3) 31-861791(5)
Bravo I XR/XZ ALL 2004 - 2019 0M198373 and up 31-8M0104358 31-861792(2) 31-843240(4)
Blackhawk ALL 1994 - 1995 0F186717 and up 31-8M0103472 31- 86771(3) 31-815900(5) MERCURY® MERCRUISER®
Blackhawk ALL 1994 - 1995 0F186717 and up 31-8M0103472 31- 86768A 2(2) 31- 87156(4)
215H ALL 1970 2782203 - 2909034 31-8M0103475 N.L.A. N/A
215E ALL 1970 - 1972 2909035 - 2915034 N.L.A. N.L.A. N/A
TR/TRS ALL 1973 - 1993 3377316 and up 31-8M0103475 31- 62799A 1 N/A
TR/TRS ALL 1973 - 1993 3377316 and up 31- 38356A 1(1) 31- 62799A 1 N/A
(1) U-joint yoke brg.
(2) 2 inch O.D. thrust bearing
(3) 3 inch O.D. thrust bearing
(4) Inside-needle
(5) Outer race
(6) Timken cone # 24780/ cup # 24720
(7) Timken cone # 43131/ cup # 43300
(8) Timken cone # 89449/ cup # 89410

DRIVESHAFTS - DRIVESHAFT HOUSING UPPER DRIVESHAFT
UPPER DRIVESHAFT

45- 55796 1
Hole drilled thru the center of shaft from end to end
Fits Alpha One Gen II & Vazer
45- 55796
Hole drilled in center of shaft on one end only
Fits MC‑I, R, MR & Alpha One

Quicksilver Product Guide 1033
