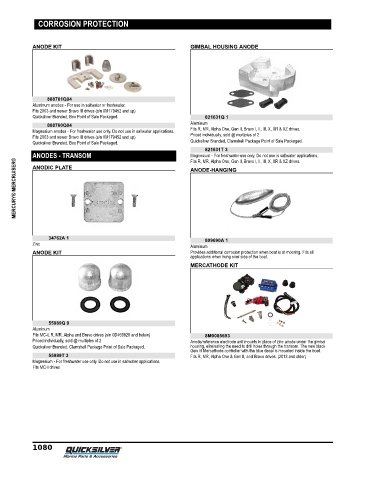

Page 1089 - Quicksilver Product Guide (2020) - 8M0163242

CORROSION PROTECTION

ANODE KIT GIMBAL HOUSING ANODE

888761Q04
Aluminum anodes ‑ For use in saltwater or freshwater.
Fits 2003 and newer Bravo III drives (s/n 0M179452 and up)
Quicksilver Branded, Box Point of Sale Packaged. 821631Q 1
888760Q04 Aluminum
Magnesium anodes ‑ For freshwater use only. Do not use in saltwater applications. Fits R, MR, Alpha One, Gen II, Bravo I, II, III, X, XR & XZ drives.
Fits 2003 and newer Bravo III drives (s/n 0M179452 and up) Priced individually, sold @ multiples of 2
Quicksilver Branded, Box Point of Sale Packaged. Quicksilver Branded, Clamshell Package Point of Sale Packaged.
821631T 3
ANODES - TRANSOM Magnesium ‑ For freshwater use only. Do not use in saltwater applications.
MERCURY® MERCRUISER®
Fits R, MR, Alpha One, Gen II, Bravo I, II, III, X, XR & XZ drives.
ANODIC PLATE
ANODE-HANGING

34762A 1 809690A 1
Zinc
Aluminum
ANODE KIT Provides additional corrosion protection when boat is at mooring. Fits all
applications when hung over side of the boat.
MERCATHODE KIT

55989Q 9
Aluminum
Fits MC‑I, R, MR, Alpha and Bravo drives (s/n 0D469828 and below) 8M0085693
Priced individually, sold @ multiples of 2 Anode/reference electrode unit mounts in place of zinc anode under the gimbal
Quicksilver Branded, Clamshell Package Point of Sale Packaged. housing, eliminating the need to drill holes through the transom. The new black
Gen III Mercathode controller with the blue decal is mounted inside the boat.
55989T 3 Fits R, MR, Alpha One & Gen II, and Bravo drives. (2013 and older)
Magnesium ‑ For freshwater use only. Do not use in saltwater applications.
Fits MC‑I drives

1080
