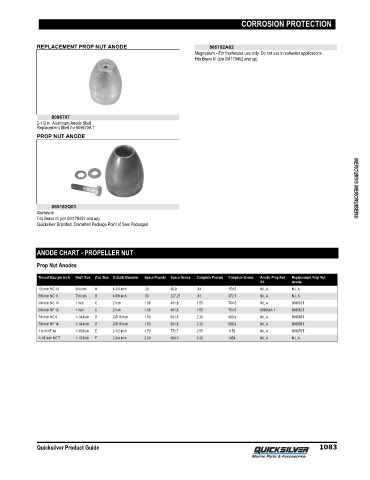

Page 1092 - Quicksilver Product Guide (2020) - 8M0163242

CORROSION PROTECTION

REPLACEMENT PROP NUT ANODE 865182A02
Magnesium ‑ For freshwater use only. Do not use in saltwater applications.
Fits Bravo III (s/n 0M179452 and up)

809670T
2‑1/2 in. Aluminum Anode Shell
Replacement Shell for 809670A 1
PROP NUT ANODE

865182Q01 MERCURY® MERCRUISER®
Aluminum
Fits Bravo III (s/n 0M179452 and up)
Quicksilver Branded, Clamshell Package Point of Sale Packaged.

ANODE CHART - PROPELLER NUT

Prop Nut Anodes

Thread Size/ per inch Shaft Size Zinc Size Outside Diameter Space Pounds Space Grams Complete Pounds Complete Grams Anodic Prop Nut Replacement Prop Nut
Kit Anode
1/2 inch NC 13 3/4 inch A 1-1/4 inch .20 90.9 .34 154.5 N.L.A. N.L.A.
5/8 inch NC 11 7/8 inch B 1-5/8 inch .50 227.27 .82 372.7 N.L.A. N.L.A.
3/4 inch NC 10 1 inch C 2 inch 1.06 481.8 1.55 704.5 N.L.A. 809662T
3/4 inch NF 16 1 inch C 2 inch 1.06 481.8 1.55 704.5 809664A 1 809662T
7/8 inch NC 9 1-1/4 inch D 2-5/16 inch 1.50 681.8 2.20 999.9 N.L.A. 809666T
7/8 inch NF 14 1-1/4 inch D 2-5/16 inch 1.50 681.8 2.20 999.9 N.L.A. 809666T
1 inch NF 14 1-3/8 inch E 2-1/2 inch 1.70 772.7 2.55 1159 N.L.A. 809670T
1-1/8 inch NC 7 1-1/2 inch F 2-3/4 inch 2.00 909.0 3.20 1454 N.L.A. N.L.A.

Quicksilver Product Guide 1083
