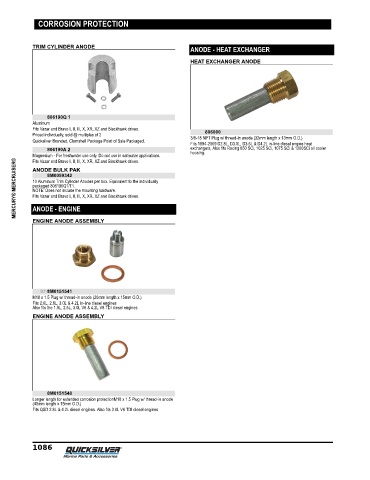

Page 1095 - Quicksilver Product Guide (2020) - 8M0163242

CORROSION PROTECTION

TRIM CYLINDER ANODE
ANODE - HEAT EXCHANGER
HEAT EXCHANGER ANODE

806190Q 1
Aluminum
Fits Vazer and Bravo I, II, III, X, XR, XZ and Blackhawk drives. 806000
Priced individually, sold @ multiples of 2 3/8‑18 NPT Plug w/ thread‑in anode (32mm length x 13mm O.D.)
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
Fits 1994‑2009 D2.8L, D3.0L, D3.6L & D4.2L in‑line diesel engine heat
806190A 2 exchangers, Also fits Racing 850 SCi, 1025 SCi, 1075 SCi & 1200SCi oil cooler
Magnesium ‑ For freshwater use only. Do not use in saltwater applications. housing.
MERCURY® MERCRUISER® 10 Aluminum Trim Cylinder Anodes per box. Equivalent to the individually
Fits Vazer and Bravo I, II, III, X, XR, XZ and Blackhawk drives.
ANODE BULK PAK
8M0059342
packaged 806190Q1/T1.
NOTE: Does not include the mounting hardware.
Fits Vazer and Bravo I, II, III, X, XR, XZ and Blackhawk drives.
ANODE - ENGINE

ENGINE ANODE ASSEMBLY

97-8M0151541
M18 x 1.5 Plug w/ thread‑in anode (20mm length x 15mm O.D.)
Fits 2.0L, 2.8L, 3.0L & 4.2L in‑line diesel engines
Also fits the 1.9L, 2.5L, 3.0L V6 & 4.2L V8 TDI diesel engines
ENGINE ANODE ASSEMBLY

8M0151540
Longer length for extended corrosion protectionM18 x 1.5 Plug w/ thread‑in anode
(40mm length x 15mm O.D.)
Fits QSD 2.8L & 4.2L diesel engines. Also fits 3.0L V6 TDI diesel engines

1086
