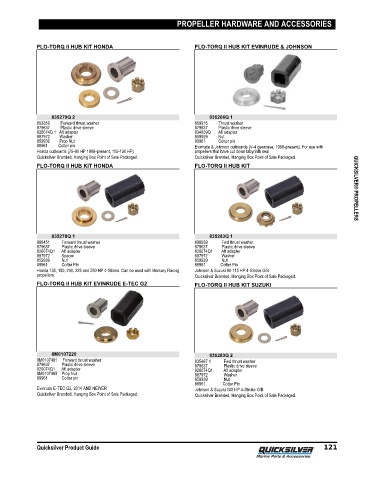

Page 130 - Quicksilver Product Guide (2020) - 8M0163242

PROPELLER HARDWARE AND ACCESSORIES

FLO-TORQ II HUB KIT HONDA FLO-TORQ II HUB KIT EVINRUDE & JOHNSON

835279Q 2 835266Q 1
853359 Forward thrust washer 859915 Thrust washer
879637 Plastic drive sleeve 879637 Plastic drive sleeve
826074Q 1 Aft adapter 834839Q Aft adapter
887972 Washer 859929 Nut
859939 Prop Nut 89961 Cotter pin
88961 Cotter pin Evinrude & Johnson outboards (V‑4 gearcase, 1968‑present). For use with
Honda outboards (75‑90 HP 1999‑present, 115‑130 HP) propellers that have cut down labyrinth seal.
Quicksilver Branded, Hanging Box Point of Sale Packaged. Quicksilver Branded, Hanging Box Point of Sale Packaged.
FLO-TORQ II HUB KIT HONDA FLO-TORQ II HUB KIT QUICKSILVER® PROPELLERS

835278Q 1 835283Q 1
888451 Forward thrust washer 888939 Fwd thrust washer
879637 Plastic drive sleeve 879637 Plastic drive sleeve
826074Q1 Aft adapter 826074Q1 Aft adapter
887972 Spacer 887972 Washer
859939 Nut 859939 Nut
89961 Cotter Pin 89961 Cotter Pin
Honda 135, 150, 200, 225 and 250 HP 4‑Stroke. Can be used with Mercury Racing Johnson & Suzuki 90‑115 HP 4‑Stroke O/B
propellers. Quicksilver Branded, Hanging Box Point of Sale Packaged.
FLO-TORQ II HUB KIT EVINRUDE E-TEC G2 FLO-TORQ II HUB KIT SUZUKI

8M0107220 835283Q 2
8M0107491 Forward thrust washer 835467 1 Fwd thrust washer
879637 Plastic drive sleeve 879637 Plastic drive sleeve
826074Q1 Aft adapter 826074Q1 Aft adapter
8M0107489 Prop Nut 887972 Washer
89961 Cotter pin 859939 Nut
89961 Cotter Pin
Evinrude E‑TEC G2, 2014 AND NEWER Johnson & Suzuki 140 HP 4‑Stroke O/B
Quicksilver Branded, Hanging Box Point of Sale Packaged. Quicksilver Branded, Hanging Box Point of Sale Packaged.

Quicksilver Product Guide 121
