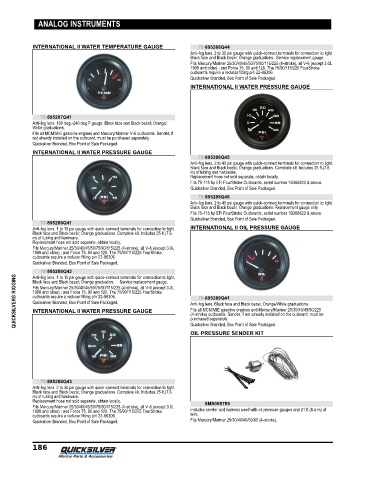

Page 195 - Quicksilver Product Guide (2020) - 8M0163242

ANALOG INSTRUMENTS

INTERNATIONAL II WATER TEMPERATURE GAUGE 79-895288Q44
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; Orange graduations. Service replacement gauge.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
INTERNATIONAL II WATER PRESSURE GAUGE

79-895287Q41
Anti‑fog lens. 100 deg.‑240 deg.F gauge. Black face and Black bezel; Orange/
White graduations.
Fits all MCM/MIE gasoline engines and Mercury/Mariner V‑6 outboards. Sender, if
not already installed on the outboard, must be purchased separately.
Quicksilver Branded, Box Point of Sale Packaged.
INTERNATIONAL II WATER PRESSURE GAUGE
79-895288Q45
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; Orange graduations. Complete kit. Includes 25 ft.(7.6
m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q46
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; Orange graduations. Replacement gauge only.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q41
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light. INTERNATIONAL II OIL PRESSURE GAUGE
Black face and Black bezel; Orange graduations. Complete kit. Includes 25 ft.(7.6
m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q42
QUICKSILVER® RIGGING Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L Anti‑fog lens. Black face and Black bezel; Orange/White graduations.
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; Orange graduation. Service replacement gauge.
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
79-895289Q41
Quicksilver Branded, Box Point of Sale Packaged.
Fits all MCM/MIE gasoline engines and Mercury/Mariner 25/30/40/45/50/225
INTERNATIONAL II WATER PRESSURE GAUGE
(4‑stroke) outboards. Sender, if not already installed on the outboard, must be
purchased separately.
Quicksilver Branded, Box Point of Sale Packaged.
OIL PRESSURE SENDER KIT

79-895288Q43
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; Orange graduations. Complete kit. Includes 25 ft.(7.6
m) of tubing and hardware.
Replacement hose not sold separate, obtain locally. 8M0068785
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke Includes sender and harness used with oil pressure gauges and 21 ft.(6.4 m) of
outboards require a reducer fitting p/n 22‑86306. wire.
Quicksilver Branded, Box Point of Sale Packaged. Fits Mercury/Mariner 25/30/40/45/50/60 (4‑stroke).

186
