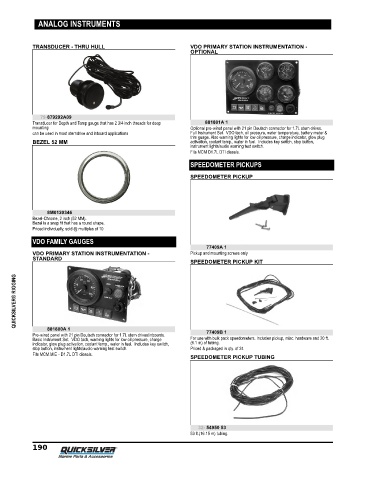

ANALOG INSTRUMENTS

TRANSDUCER - THRU HULL VDO PRIMARY STATION INSTRUMENTATION -
OPTIONAL

79-879292A09
Transducer for Depth and Temp gauge that has 2 3/4 inch threads for deep 881801A 1
mounting Optional pre‑wired panel with 21 pin Deutsch connector for 1.7L stern drives.
can be used in most sterndrive and inboard applications Full Instrument Set. VDO tach, oil pressure, water temperature, battery meter &
trim guage. Also warning lights for low oil pressure, charge indicator, glow plug
BEZEL 52 MM activation, coolant temp., water in fuel. Includes key switch, stop button,
instrument lights/audio warning test switch.
Fits MCM D1.7L DTI diesels.
SPEEDOMETER PICKUPS

SPEEDOMETER PICKUP

8M0120346
Bezel‑Chrome, 2 inch (52 MM).
Bezel is a snap fit that has a round shape.
Priced individually, sold @ multiples of 10
VDO FAMILY GAUGES
77409A 1
VDO PRIMARY STATION INSTRUMENTATION - Pickup and mounting screws only
STANDARD
SPEEDOMETER PICKUP KIT
QUICKSILVER® RIGGING

881800A 1
Pre‑wired panel with 21 pin Deutsch connector for 1.7L stern drives/inboards. 77409B 1
Basic Instrument Set. VDO tach, warning lights for low oil pressure, charge For use with bulk pack speedometers. Includes pickup, misc. hardware and 20 ft.
indicator, glow plug activation, coolant temp., water in fuel. Includes key switch, (6.1 m) of tubing.
stop button, instrument lights/audio warning test switch. Priced & packaged in qty. of 24
Fits MCM.MIE ‑ D1.7L DTI diesels.
SPEEDOMETER PICKUP TUBING

32- 54950 53
53 ft.(16.15 m) tubing.
190
