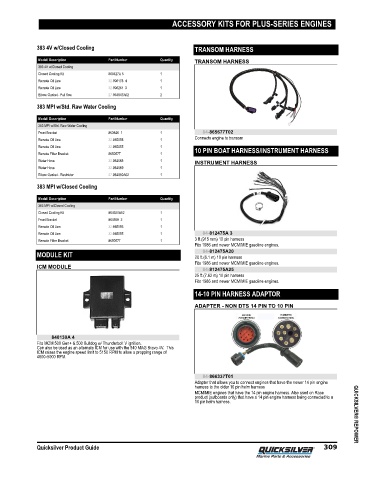

Page 318 - Quicksilver Product Guide (2020) - 8M0163242

ACCESSORY KITS FOR PLUS-SERIES ENGINES

383 4V w/Closed Cooling TRANSOM HARNESS

Model/ Description Part Number Quantity TRANSOM HARNESS
383 4V w/Closed Cooling
Closed Cooling Kit 860427A 5 1
Remote Oil Line 32-806178 4 1
Remote Oil Line 32-806261 3 1
Elbow Gasket - Full flow 27-864547A02 2
383 MPI w/Std. Raw Water Cooling

Model/ Description Part Number Quantity
383 MPI w/Std. Raw Water Cooling
Front Bracket 863646 1 1 84-865677T02
Connects engine to transom
Remote Oil Line 32-865056 1
Remote Oil Line 32-865055 1
Remote Filter Bracket 865057T 1 10 PIN BOAT HARNESS/INSTRUMENT HARNESS
Water Hose 32-864568 1 INSTRUMENT HARNESS
Water Hose 32-864569 1
Elbow Gasket - Restrictor 27-864850A02 1
383 MPI w/Closed Cooling
Model/ Description Part Number Quantity
383 MPI w/Closed Cooling
Closed Cooling Kit 864920A02 1
Front Bracket 864558 2 1
Remote Oil Line 32-865056 1
Remote Oil Line 32-865055 1 84-812475A 3
3 ft.(915 mm) 10 pin harness
Remote Filter Bracket 865057T 1
Fits 1986 and newer MCM/MIE gasoline engines.
84-812475A20
MODULE KIT 20 ft.(6.1 m) 10 pin harness
Fits 1986 and newer MCM/MIE gasoline engines.
ICM MODULE
84-812475A25
25 ft.(7.62 m) 10 pin harness
Fits 1986 and newer MCM/MIE gasoline engines.
14-10 PIN HARNESS ADAPTOR
ADAPTER - NON DTS 14 PIN TO 10 PIN

840130A 4
Fits MCM 500 Gen+ & 500 Bulldog w/ Thunderbolt V ignition.
Can also be used as an alternate ICM for use with the 540 MAG Bravo 4V. This
ICM raises the engine speed limit to 5150 RPM to allow a propping range of
4600‑5000 RPM.

84-866337T01
Adapter that allows you to connect engines that have the newer 14 pin engine
harness to the older 10 pin helm harness
MCM/MIE engines that have the 14 pin engine harness. Also used on Race
product (outboards only) that have a 14 pin engine harness being connected to a
10 pin helm harness. QUICKSILVER® REPOWER

Quicksilver Product Guide 309
