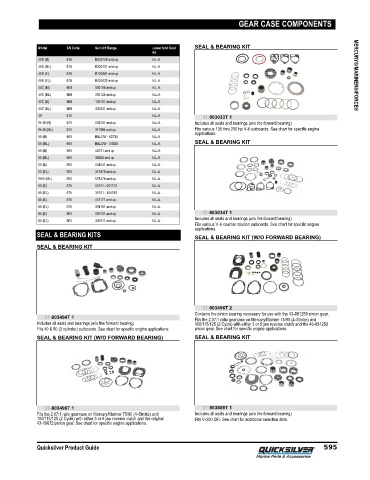

Page 604 - Quicksilver Product Guide (2020) - 8M0163242

GEAR CASE COMPONENTS

Model SN Code Serial # Range Lower Unit Seal SEAL & BEARING KIT
Kit
40B (M) 676 B000106 and up N.L.A.
40B (ML) 676 B300101 and up N.L.A.
40B (E) 676 B100461 and up N.L.A. MERCURY®/MARINER®/FORCE®
40B (EL) 676 B400420 and up N.L.A.
40C (M) 6E9 000106 and up N.L.A.
40C (ML) 6E9 300126 and up N.L.A.
40C (E) 6E9 100101 and up N.L.A.
40C (EL) 6E9 400231 and up N.L.A.
48 670 N.L.A. 31-803033T 1
W-48 (M) 670 002161 and up N.L.A. Includes all seals and bearings (w/o the forward bearing)
W-48 (ML) 670 311996 and up N.L.A. Fits various 135 thru 200 hp V‑6 outboards. See chart for specific engine
applications.
55 (M) 663 BELOW - 02730 N.L.A.
55 (ML) 663 BELOW - 34925 N.L.A. SEAL & BEARING KIT
55 (M) 663 02731 and up N.L.A.
55 (ML) 663 34926 and up N.L.A.
55 (E) 663 004041 and up N.L.A.
55 (EL) 663 315379 and up N.L.A.
W55 (ML) 663 578278 and up N.L.A.
60 (E) 675 00101 - 001170 N.L.A.
60 (EL) 675 30101 - 304180 N.L.A.
60 (E) 675 001171 and up N.L.A.
60 (EL) 675 304181 and up N.L.A.
60 (E) 6F0 000101 and up N.L.A. 31-803034T 1
Includes all seals and bearings (w/o the forward bearing)
60 (EL) 6F0 300311 and up N.L.A.
Fits various V‑6 counter rotation outboards. See chart for specific engine
applications.
SEAL & BEARING KITS SEAL & BEARING KIT (W/O FORWARD BEARING)
SEAL & BEARING KIT

31-803496T 2
Contains the pinion bearing necessary for use with the 43‑881259 pinion gear.
31-803494T 1 Fits the 2.07:1 ratio gearcase on Mercury/Mariner 75/90 (4‑Stroke) and
Includes all seals and bearings (w/o the forward bearing) 100/115/125 (2 Cycle) with either 3 or 6 jaw reverse clutch and the 43‑881259
Fits 40 & 50 (3 cylinder) outboards. See chart for specific engine applications. pinion gear. See chart for specific engine applications.
SEAL & BEARING KIT (W/O FORWARD BEARING) SEAL & BEARING KIT

31-803496T 1 31-803808T 1
Fits the 2.07:1 ratio gearcase on Mercury/Mariner 75/90 (4‑Stroke) and Includes all seals and bearings (w/o the forward bearing)
100/115/125 (2 Cycle) with either 3 or 6 jaw reverse clutch and the original Fits V‑200 DFI. See chart for additional selection data.
43‑19672 pinion gear. See chart for specific engine applications.

Quicksilver Product Guide 595
