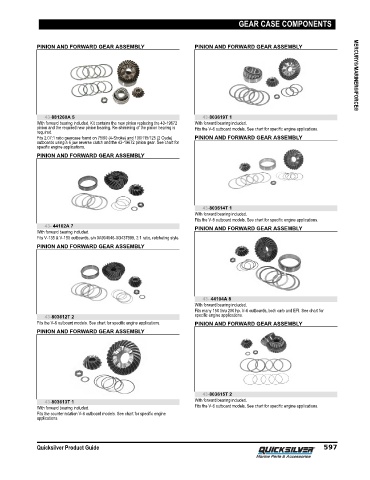

Page 606 - Quicksilver Product Guide (2020) - 8M0163242

GEAR CASE COMPONENTS

PINION AND FORWARD GEAR ASSEMBLY PINION AND FORWARD GEAR ASSEMBLY MERCURY®/MARINER®/FORCE®

43-881260A 5 43-803619T 1
With forward bearing included. Kit contains the new pinion replacing the 43‑19672 With forward bearing included.
pinion and the required new pinion bearing. Re‑shimming of the pinion bearing is Fits the V‑6 outboard models. See chart for specific engine applications.
required.
Fits 2.07:1 ratio gearcase found on 75/90 (4‑Stroke) and 100/115/125 (2 Cycle) PINION AND FORWARD GEAR ASSEMBLY
outboards using a 6 jaw reverse clutch and the 43‑19672 pinion gear. See chart for
specific engine applications.
PINION AND FORWARD GEAR ASSEMBLY

43-803614T 1
With forward bearing included.
Fits the V‑6 outboard models. See chart for specific engine applications.
43- 44102A 7 PINION AND FORWARD GEAR ASSEMBLY
With forward bearing included.
Fits V‑135 & V‑150 outboards, s/n 0A904646‑0G437999, 2:1 ratio, ratcheting style.
PINION AND FORWARD GEAR ASSEMBLY

43- 44104A 8
With forward bearing included.
Fits many 150 thru 200 hp. V‑6 outboards, both carb and EFI. See chart for
43-803612T 2 specific engine applications.
Fits the V‑6 outboard models. See chart for specific engine applications. PINION AND FORWARD GEAR ASSEMBLY
PINION AND FORWARD GEAR ASSEMBLY

43-803615T 2
43-803613T 1 With forward bearing included.
With forward bearing included. Fits the V‑6 outboard models. See chart for specific engine applications.
Fits the counter rotation V‑6 outboard models. See chart for specific engine
applications.

Quicksilver Product Guide 597
