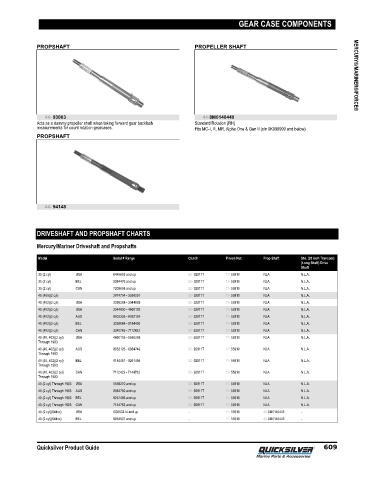

Page 618 - Quicksilver Product Guide (2020) - 8M0163242

GEAR CASE COMPONENTS

PROPSHAFT PROPELLER SHAFT MERCURY®/MARINER®/FORCE®

44- 93003 44-8M0140440
Acts as a dummy propeller shaft when taking forward gear backlash Standard Rotation (RH)
measurements for count rotation gearcases. Fits MC‑I, R, MR, Alpha One & Gen II (s/n 0K999999 and below)
PROPSHAFT

44- 94148

DRIVESHAFT AND PROPSHAFT CHARTS

Mercury/Mariner Driveshaft and Propshafts

Model Serial # Range Clutch Pinion Nut Prop Shaft Std. (20 inch Transom)
(Long Shaft) Drive
Shaft
35 (2 cyl) USA 6445653 and up 52- 92911T 11- 55910 NLA N.L.A.
35 (2 cyl) BEL 9384476 and up 52- 92911T 11- 55910 NLA N.L.A.
35 (2 cyl) CAN 7209608 and up 52- 92911T 11- 55910 NLA N.L.A.
40 (400)(2 cyl) 2874704 - 3336257 52- 92911T 11- 55910 NLA N.L.A.
40 (402)(2 cyl) USA 3336258 - 3344829 52- 92911T 11- 55910 NLA N.L.A.
40 (402)(2 cyl) USA 3344830 - 4860102 52- 92911T 11- 55910 NLA N.L.A.
40 (402)(2 cyl) AUS 8002335 - 8052124 52- 92911T 11- 55910 NLA N.L.A.
40 (402)(2 cyl) BEL 3339688 - 9184450 52- 92911T 11- 55910 NLA N.L.A.
40 (402)(2 cyl) CAN 3340783 - 7112422 52- 92911T 11- 55910 NLA N.L.A.
40 (40, 402)(2 cyl) USA 4860103 - 5556269 52- 92911T 11- 55910 NLA N.L.A.
Through 1983
40 (40, 402)(2 cyl) AUS 8052125 - 8064749 52- 92911T 11- 55910 NLA N.L.A.
Through 1983
40 (40, 402)(2 cyl) BEL 9184451 - 9251455 52- 92911T 11- 55910 NLA N.L.A.
Through 1983
40 (40, 402)(2 cyl) CAN 7112423 - 7144762 52- 92911T 11- 55910 NLA N.L.A.
Through 1983
40 (2 cyl) Through 1983 USA 5556270 and up 52- 92911T 11- 55910 NLA N.L.A.
40 (2 cyl) Through 1983 AUS 8064750 and up 52- 92911T 11- 55910 NLA N.L.A.
40 (2 cyl) Through 1983 BEL 9251456 and up 52- 92911T 11- 55910 NLA N.L.A.
40 (2 cyl) Through 1983 CAN 7144763 and up 52- 92911T 11- 55910 NLA N.L.A.
40 (2 cyl)(644cc) USA 0G053314 and up - 11- 55910 44-8M0140445 -
40 (2 cyl)(644cc) BEL 9854537 and up - 11- 55910 44-8M0140445 -

Quicksilver Product Guide 609
