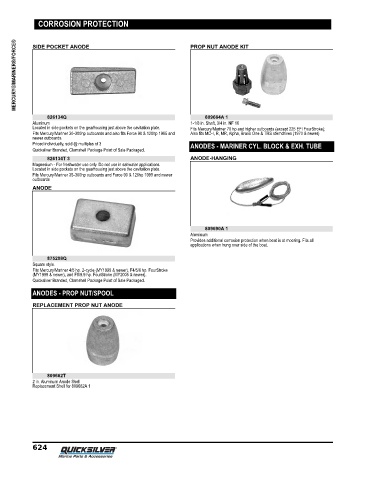

Page 633 - Quicksilver Product Guide (2020) - 8M0163242

CORROSION PROTECTION PROP NUT ANODE KIT

MERCURY®/MARINER®/FORCE®
SIDE POCKET ANODE

826134Q 809664A 1
Aluminum 1‑1/8 in. Shaft, 3/4 in. NF 16
Located in side pockets on the gearhousing just above the cavitation plate. Fits Mercury/Mariner 70 hp and higher outboards (except 225 EFI FourStroke);
Fits Mercury/Mariner 30‑300hp outboards and also fits Force 90 & 120hp 1995 and Also fits MC‑I, R, MR, Alpha, Bravo One & TRS sterndrives (1970 & newer)
newer outboards.
Priced individually, sold @ multiples of 3 ANODES - MARINER CYL. BLOCK & EXH. TUBE
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
826134T 3 ANODE-HANGING
Magnesium ‑ For freshwater use only. Do not use in saltwater applications.
Located in side pockets on the gearhousing just above the cavitation plate.
Fits Mercury/Mariner 35‑300hp outboards and Force 90 & 120hp 1995 and newer
outboards
ANODE

809690A 1
Aluminum
Provides additional corrosion protection when boat is at mooring. Fits all
applications when hung over side of the boat.

875208Q
Square style.
Fits Mercury/Mariner 4/5 hp. 2‑cycle (MY1999 & newer), F4/5/6 hp. FourStroke
(MY1999 & newer), and F8/9.9 hp. FourStroke (MY2005 & newer).
Quicksilver Branded, Clamshell Package Point of Sale Packaged.

ANODES - PROP NUT/SPOOL
REPLACEMENT PROP NUT ANODE

809662T
2 in. Aluminum Anode Shell
Replacement Shell for 809662A 1

624
