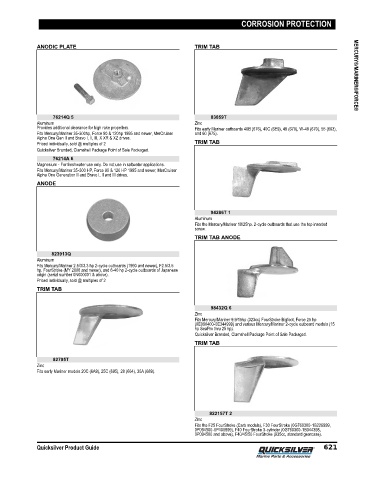

Page 630 - Quicksilver Product Guide (2020) - 8M0163242

CORROSION PROTECTION

ANODIC PLATE TRIM TAB MERCURY®/MARINER®/FORCE®

76214Q 5 83859T
Aluminum Zinc
Provides additional clearance for high rake propellers. Fits early Mariner outboards 40B (676), 40C (6E9), 48 (670), W‑48 (670), 55 (663),
Fits Mercury/Mariner 35‑300hp, Force 90 & 120hp 1995 and newer, MerCruiser and 60 (675).
Alpha One Gen II and Bravo I, II, III, X XR & XZ drives.
Priced individually, sold @ multiples of 2 TRIM TAB
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
76214A 6
Magnesium ‑ For freshwater use only. Do not use in saltwater applications.
Fits Mercury/Mariner 35‑300 HP, Force 90 & 120 HP 1995 and newer, MerCruiser
Alpha One Generation II and Bravo I, II and III drives.
ANODE

94286T 1
Aluminum
Fits the Mercury/Mariner 18/25hp. 2‑cycle outboards that use the top inserted
screw.
TRIM TAB ANODE

823913Q
Aluminum
Fits Mercury/Mariner 2.5/3/3.3 hp 2‑cycle outboards (1990 and newer), F2.5/3.5
hp. FourStroke (MY 2006 and newer), and 6‑40 hp 2‑cycle outboards of Japanese
origin (serial number 0N000001 & above).
Priced individually, sold @ multiples of 2
TRIM TAB

98432Q 6
Zinc
Fits Mercury/Mariner 9.9/15hp (323cc) FourStroke Bigfoot, Force 25 hp
(0E090400‑0E344999) and various Mercury/Mariner 2‑cycle outboard models (15
hp SeaPro thru 25 hp).
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
TRIM TAB

82795T
Zinc
Fits early Mariner models 20C (6A9), 25C (695), 28 (664), 30A (689).

822157T 2
Zinc
Fits the F25 FourStroke (Carb models), F30 FourStroke (0G760300‑1B226999,
0P094500‑0P400999), F40 FourStroke 3‑cylinder (0G760300‑1B344398,
0P094500 and above), F40/45/50 FourStroke (935cc, standard gearcase).

Quicksilver Product Guide 621
