CORROSION PROTECTION

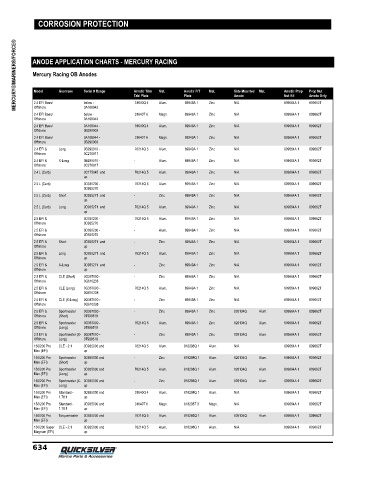

MERCURY®/MARINER®/FORCE® ANODE APPLICATION CHARTS - MERCURY RACING Anodic P/T Mat. Side Mounted Mat. Anodic Prop Prop Nut

Mercury Racing OB Anodes

Anodic Trim
Gearcase
Mat.
Serial # Range
Model
89949A 1
809664A 1
N/A
31640Q 4
809662T
2.4 EFI Bass/
Offshore
0A168043
Zinc
89949A 1
809664A 1
Magn.
below -
31640T 6
2.4 EFI Bass/ below - Tab/ Plate Alum. Plate Zinc Anode Nut Kit Anode Only
809662T
N/A
Offshore 0A168043
2.4 EFI Bass/ 0A168044 - 31640Q 4 Alum. 89949A 1 Zinc N/A 809664A 1 809662T
Offshore 0B290009
2.4 EFI Bass/ 0A168044 - 31640T 6 Magn. 89949A 1 Zinc N/A 809664A 1 809662T
Offshore 0B290009
2.4 EFI & Long 0B290010 - 76214Q 5 Alum. 89949A 1 Zinc N/A 809664A 1 809662T
Offshore 0C276917
2.4 EFI & X-Long 0B290010 - - Alum. 89949A 1 Zinc N/A 809664A 1 809662T
Offshore 0C276917
2.4 L (Carb) 0C175045 and 76214Q 5 Alum. 89949A 1 Zinc N/A 809664A 1 809662T
up
2.5 L (Carb) 0D030200 - 76214Q 5 Alum. 89949A 1 Zinc N/A 809664A 1 809662T
0D935270
2.5 L (Carb) Short 0D935271 and - Zinc 89949A 1 Zinc N/A 809664A 1 809662T
up
2.5 L (Carb) Long 0D935271 and 76214Q 5 Alum. 89949A 1 Zinc N/A 809664A 1 809662T
up
2.5 EFI & 0D030200 - 76214Q 5 Alum. 89949A 1 Zinc N/A 809664A 1 809662T
Offshore 0D935270
2.5 EFI & 0D030200 - - Alum. 89949A 1 Zinc N/A 809664A 1 809662T
Offshore 0D935270
2.5 EFI & Short 0D935271 and - Zinc 89949A 1 Zinc N/A 809664A 1 809662T
Offshore up
2.5 EFI & Long 0D935271 and 76214Q 5 Alum. 89949A 1 Zinc N/A 809664A 1 809662T
Offshore up
2.5 EFI & X-Long 0D935271 and - Zinc 89949A 1 Zinc N/A 809664A 1 809662T
Offshore up
2.5 EFI & CLE (Short) 0G367000 - - Zinc 89949A 1 Zinc N/A 809664A 1 809662T
Offshore 0G610238
2.5 EFI & CLE (Long) 0G367000 - 76214Q 5 Alum. 89949A 1 Zinc N/A 809664A 1 809662T
Offshore 0G610238
2.5 EFI & CLE (X-Long) 0G367000 - - Zinc 89949A 1 Zinc N/A 809664A 1 809662T
Offshore 0G610238
2.5 EFI & Sportmaster 0G367000 - - Zinc 89949A 1 Zinc 826134Q Alum. 809664A 1 809662T
Offshore (Short) 0T999519
2.5 EFI & Sportmaster 0G367000 - 76214Q 5 Alum. 89949A 1 Zinc 826134Q Alum. 809664A 1 809662T
Offshore (Long) 0T999519
2.5 EFI & Sportmaster (X- 0G367000 - - Zinc 89949A 1 Zinc 826134Q Alum. 809664A 1 809662T
Offshore Long) 0T999519
150/200 Pro CLE - 2:1 0D935000 and 76214Q 5 Alum. 818298Q 1 Alum. N/A 809664A 1 809662T
Max (EFI) up
150/200 Pro Sportmaster 0D935000 and - Zinc 818298Q 1 Alum. 826134Q Alum. 809664A 1 809662T
Max (EFI) (Short) up
150/200 Pro Sportmaster 0D935000 and 76214Q 5 Alum. 818298Q 1 Alum. 826134Q Alum. 809664A 1 809662T
Max (EFI) (Long) up
150/200 Pro Sportmaster (X- 0D935000 and - Zinc 818298Q 1 Alum. 826134Q Alum. 809664A 1 809662T
Max (EFI) Long) up
150/200 Pro Standard - 0D935000 and 31640Q 4 Alum. 818298Q 1 Alum. N/A 809664A 1 809662T
Max (EFI) 1.78:1 up
150/200 Pro Standard - 0D935000 and 31640T 6 Magn. 818298T 3 Magn. N/A 809664A 1 809662T
Max (EFI) 1.78:1 up
150/200 Pro Torquemaster 0D935000 and 76214Q 5 Alum. 818298Q 1 Alum. 826134Q Alum. 809664A 1 809662T
Max (EFI) up
150/200 Super CLE - 2:1 0D935000 and 76214Q 5 Alum. 818298Q 1 Alum. N/A 809664A 1 809662T
Magnum (EFI) up
