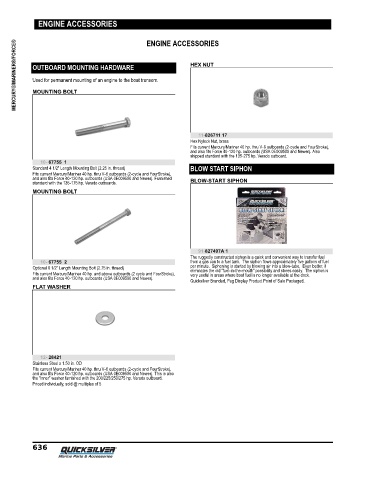

Page 645 - Quicksilver Product Guide (2020) - 8M0163242

ENGINE ACCESSORIES ENGINE ACCESSORIES

MERCURY®/MARINER®/FORCE® OUTBOARD MOUNTING HARDWARE HEX NUT

Used for permanent mounting of an engine to the boat transom.
MOUNTING BOLT

11-826711 17
Hex Nylock Nut, brass
Fits current Mercury/Mariner 40 hp. thru V‑6 outboards (2‑cycle and FourStroke),
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer). Also
shipped standard with the 135‑275 hp. Verado outboard.
10- 67755 1
Standard 4 1/2" Length Mounting Bolt (2.25 in. thread) BLOW START SIPHON
Fits current Mercury/Mariner 40 hp. thru V‑6 outboards (2‑cycle and FourStroke),
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer). Furnished BLOW-START SIPHON
standard with the 135‑175 hp. Verado outboards.
MOUNTING BOLT

91-827497A 1
The ruggedly constructed siphon is a quick and convenient way to transfer fuel
10- 67755 2 from a gas can to a fuel tank. The siphon flows approximately five gallons of fuel
Optional 6 1/2" Length Mounting Bolt (2.75 in. thread) per minute. Siphoning is started by blowing air into a blow‑tube. Even better, it
eliminates the old "fuel‑in‑the‑mouth" possibility and stores easily. The siphon is
Fits current Mercury/Mariner 40 hp. and above outboards (2 cycle and FourStroke), very useful in areas where boat fuel is no longer available at the dock.
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer).
Quicksilver Branded, Peg Display Product Point of Sale Packaged.
FLAT WASHER

12- 28421
Stainless Steel x 1.50 in. OD
Fits current Mercury/Mariner 40 hp. thru V‑6 outboards (2‑cycle and FourStroke),
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer). This is also
the "inner" washer furnished with the 200/225/250/275 hp. Verado outboard.
Priced individually, sold @ multiples of 5

636
