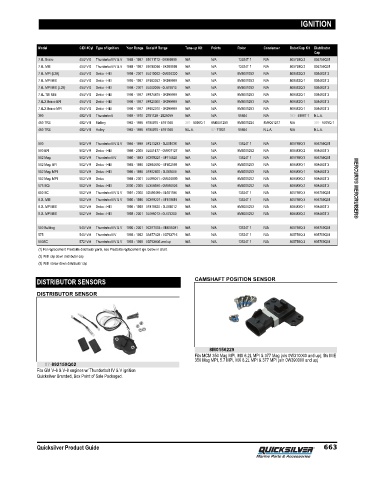

Page 672 - Quicksilver Product Guide (2020) - 8M0163242

IGNITION

Model CID/ #Cyl Type of Ignition Year Range Serial # Range Tune-up Kit Points Rotor Condenser Rotor/Cap Kit Distributor
Cap
7.4L Bravo 454/ V-8 Thunderbolt IV & V 1988 - 1997 0B771113 - 0K999999 N/A N/A 13524T 1 N/A 805759Q 3 805759Q01
7.4L MIE 454/ V-8 Thunderbolt IV & V 1988 - 1997 0B788366 - 0K999999 N/A N/A 13524T 1 N/A 805759Q 3 805759Q01
7.4L MPI (L29) 454/ V-8 Delco - HEI 1998 - 2001 0L010003 - 0M024330 N/A N/A 8M6001252 N/A 808483Q 2 808483T 3
7.4L MPI MIE 454/ V-8 Delco - HEI 1995 - 1997 0F563052 - 0K999999 N/A N/A 8M6001253 N/A 808483Q 1 808483T 3
7.4L MPI MIE (L29) 454/ V-8 Delco - HEI 1998 - 2001 0L002006 - 0L674613 N/A N/A 8M6001252 N/A 808483Q 2 808483T 3
7.4L TBI MIE 454/ V-8 Delco - HEI 1996 - 1997 0F874815 - 0K999999 N/A N/A 8M6001253 N/A 808483Q 1 808483T 3
7.4LX Bravo EFI 454/ V-8 Delco - HEI 1996 - 1997 0F820000 - 0K999999 N/A N/A 8M6001253 N/A 808483Q 1 808483T 3
7.4LX Bravo MPI 454/ V-8 Delco - HEI 1996 - 1997 0F602010 - 0K999999 N/A N/A 8M6001253 N/A 808483Q 1 808483T 3
390 482/ V-8 Thunderbolt 1969 - 1970 2781129 - 2825059 N/A N/A 65864 N/A 393- 4988T 1 N.L.A.
460 TRS 482/ V-8 Mallory 1983 - 1986 6180970 - 6181046 391- 5090Q 1 8M6001250 8M6001224 8M6001217 N/A 391- 5075Q 1
460 TRS 482/ V-8 Holley 1983 - 1986 6180970 - 6181046 N.L.A. 87- 71831 65864 N.L.A. N/A N.L.A.

500 502/ V-8 Thunderbolt IV & V 1994 - 1999 0F213293 - 0L601036 N/A N/A 13524T 1 N/A 805759Q 3 805759Q01
500 EFI 502/ V-8 Delco - HEI 1998 - 2005 0L001477 - 0M907127 N/A N/A 8M6001252 N/A 808483Q 2 808483T 3
502 Mag. 502/ V-8 Thunderbolt IV 1990 - 1993 0C878221 - 0F114528 N/A N/A 13524T 1 N/A 805759Q 3 805759Q01
502 Mag. EFI 502/ V-8 Delco - HEI 1993 - 1996 0D840650 - 0F802599 N/A N/A 8M6001253 N/A 808483Q 1 808483T 3
502 Mag. MPI 502/ V-8 Delco - HEI 1996 - 1998 0F802600 - 0L085000 N/A N/A 8M6001253 N/A 808483Q 1 808483T 3
502 Mag. MPI 502/ V-8 Delco 1998 - 2001 0L085001 - 0M024999 N/A N/A 8M6001252 N/A 808483Q 2 808483T 3
575 SCi 502/ V-8 Delco - HEI 2000 - 2005 0L306696 - 0M950526 N/A N/A 8M6001252 N/A 808483Q 2 808483T 3 MERCURY® MERCRUISER®
600 SC 502/ V-8 Thunderbolt IV & V 1991 - 2000 0D456489 - 0L601186 N/A N/A 13524T 1 N/A 805759Q 3 805759Q01
8.2L MIE 502/ V-8 Thunderbolt IV & V 1990 - 1996 0C878221 - 0F819619 N/A N/A 13524T 1 N/A 805759Q 3 805759Q01
8.2L MPI MIE 502/ V-8 Delco - HEI 1996 - 1998 0F819620 - 0L086012 N/A N/A 8M6001253 N/A 808483Q 1 808483T 3
8.2L MPI MIE 502/ V-8 Delco - HEI 1998 - 2001 0L086013 - 0L674200 N/A N/A 8M6001252 N/A 808483Q 2 808483T 3

500 Bulldog 540/ V-8 Thunderbolt IV & V 1990 - 2001 0C577003 - 0M050281 N/A N/A 13524T 1 N/A 805759Q 3 805759Q01
575 540/ V-8 Thunderbolt IV 1986 - 1992 0A677429 - 0D763716 N/A N/A 13524T 1 N/A 805759Q 3 805759Q01
800SC 572/ V-8 Thunderbolt IV & V 1993 - 1998 0D763836 and up N/A N/A 13524T 1 N/A 805759Q 3 805759Q01
(1) For replacement Prestolite distributor parts, see Prestolite replacement ign. below in chart.
(2) With clip down distributor cap
(3) With screw down distributor cap

DISTRIBUTOR SENSORS CAMSHAFT POSITION SENSOR

DISTRIBUTOR SENSOR

8M0156229
Fits MCM 350 Mag MPI, MX 6.2L MPI & 377 Mag (s/n 0W310000 and up); fits MIE
350 Mag MPI, 5.7 MPI, MX 6.2L MPI & 377 MPI (s/n 0W390000 and up)
87-892150Q02
Fits GM V‑6 & V‑8 engines w/ Thunderbolt IV & V ignition
Quicksilver Branded, Box Point of Sale Packaged.

Quicksilver Product Guide 663
