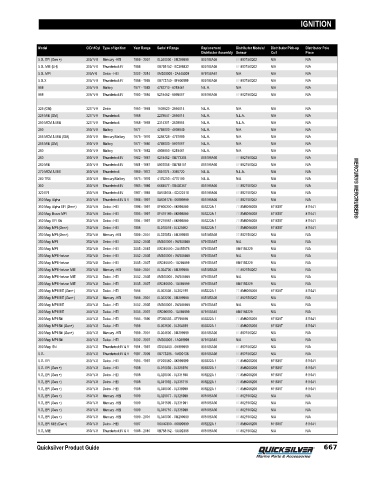

Page 676 - Quicksilver Product Guide (2020) - 8M0163242
P. 676
IGNITION
Model CID/ #Cyl Type of Ignition Year Range Serial # Range Replacement Distributor Module/ Distributor Pick-up Distributor Pole
Distributor Assembly Sensor Coil Piece
5.0L EFI (Gen +) 305/ V-8 Mercury -HEI 1999 - 2001 0L340000 - 0M299999 805185A36 87-892150Q02 N/A N/A
5.0L MIE (LH) 305/ V-8 Thunderbolt IV 1988 0B788152 - 0C396832 805185A36 87-892150Q02 N/A N/A
5.0L MPI 305/V-8 Delco - HEI 2002 - 2014 0M300000 - 2A445009 879150A87 N/A N/A N/A
5.0LX 305/ V-8 Thunderbolt IV 1988 - 1995 0B773740 - 0F600999 805185A36 87-892150Q02 N/A N/A
898 305/ V-8 Mallory 1977 - 1982 4762210 - 6218461 N.L.A. N/A N/A N/A
898 305/ V-8 Thunderbolt IV 1983 - 1984 6218462 - 6899057 805185A36 87-892150Q02 N/A N/A
225 (GM) 327/ V-8 Delco 1963 - 1969 1539620 - 2694014 N.L.A. N/A N/A N/A
225 MIE (GM) 327/ V-8 Thunderbolt 1968 2278647 - 2694014 N.L.A. N.L.A. N/A N/A
250 MCM & MIE 327/ V-8 Thunderbolt 1968 - 1969 2314301 - 2639854 N.L.A. N.L.A. N/A N/A
250 350/ V-8 Mallory 1977 4768000 - 4908849 N.L.A. N/A N/A N/A
255 MCM & MIE (GM) 350/ V-8 Mercury/Mallory 1975 - 1976 3258728 - 4767999 N.L.A. N/A N/A N/A
255 MIE (GM) 350/ V-8 Mallory 1977 - 1980 4768000 - 5907057 N.L.A. N/A N/A N/A
260 350/ V-8 Mallory 1978 - 1982 4908850 - 6218461 N.L.A. N/A N/A N/A
260 350/ V-8 Thunderbolt IV 1982 - 1987 6218462 - 0B773304 805185A36 87-892150Q02 N/A N/A
260 MIE 350/ V-8 Thunderbolt IV 1981 - 1987 5907058 - 0B788151 805185A36 87-892150Q02 N/A N/A
270 MCM & MIE 350/ V-8 Thunderbolt 1969 - 1972 2851074 - 3385720 N.L.A. N.L.A. N/A N/A
280 TRS 350/ V-8 Mercury/Mallory 1975 - 1976 4176250 - 4770199 N.L.A. N/A N/A N/A
300 350/ V-8 Thunderbolt IV 1985 - 1986 6668677 - 0B430367 805185A36 87-892150Q02 N/A N/A MERCURY® MERCRUISER®
320 EFI 350/ V-8 Thunderbolt IV 1987 - 1989 0A543604 - 0C622418 805185A36 87-892150Q02 N/A N/A
350 Mag. Alpha 350/ V-8 Thunderbolt IV & V 1986 - 1997 0A635178 - 0K999999 805185A36 87-892150Q02 N/A N/A
350 Mag. Alpha EFI (Gen+) 350/ V-8 Delco - HEI 1996 - 1997 0F800300 - 0K999999 805222A 1 77-8M6008208 811639T 811641
350 Mag. Bravo MPI 350/ V-8 Delco - HEI 1995 - 1997 0F415189 - 0K999999 805222A 1 77-8M6008208 811639T 811641
350 Mag. EFI Ski 350/ V-8 Delco - HEI 1994 - 1997 0F215561 - 0K999999 805222A 1 77-8M6008208 811639T 811641
350 Mag. MPI (Gen+) 350/ V-8 Delco - HEI 1998 0L010019 - 0L325952 805222A 1 77-8M6008208 811639T 811641
350 Mag. MPI (Gen+) 350/ V-8 Mercury -HEI 1999 - 2001 0L325953 - 0M299999 805185A36 87-892150Q02 N/A N/A
350 Mag. MPI 350/ V-8 Delco - HEI 2002 - 2005 0M300000 - 0W309999 879150A87 N/A N/A N/A
350 Mag. MPI 350/ V-8 Delco - HEI 2005 - 2015 0W310000 - 2A455878 879150A87 8M0156229 N/A N/A
350 Mag. MPI Horizon 350/ V-8 Delco - HEI 2002 - 2005 0M300000 - 0W309999 879150A87 N/A N/A N/A
350 Mag. MPI Horizon 350/ V-8 Delco - HEI 2005 - 2007 0W310000 - 1A299999 879150A87 8M0156229 N/A N/A
350 Mag. MPI Horizon MIE 350/ V-8 Mercury -HEI 1999 - 2001 0L304700 - 0M299999 805185A36 87-892150Q02 N/A N/A
350 Mag. MPI Horizon MIE 350/ V-8 Delco - HEI 2002 - 2005 0M300000 - 0W309999 879150A87 N/A N/A N/A
350 Mag. MPI Horizon MIE 350/ V-8 Delco - HEI 2005 - 2007 0W310000 - 1A089999 879150A87 8M0156229 N/A N/A
350 Mag. MPI MIE (Gen+) 350/ V-8 Delco - HEI 1998 0L002008 - 0L302199 805222A 1 77-8M6008208 811639T 811641
350 Mag. MPI MIE (Gen+) 350/ V-8 Mercury -HEI 1998 - 2001 0L302200 - 0M299999 805185A36 87-892150Q02 N/A N/A
350 Mag. MPI MIE 350/ V-8 Delco - HEI 2002 - 2005 0M300000 - 0W389999 879150A87 N/A N/A N/A
350 Mag. MPI MIE 350/ V-8 Delco - HEI 2005 - 2007 0W390000 - 1A089999 879150A87 8M0156229 N/A N/A
350 Mag. MPI Ski 350/ V-8 Delco - HEI 1995 - 1996 0F350583 - 0F799999 805222A 1 77-8M6008208 811639T 811641
350 Mag. MPI Ski (Gen+) 350/ V-8 Delco - HEI 1998 0L002600 - 0L304599 805222A 1 77-8M6008208 811639T 811641
350 Mag. MPI Ski (Gen+) 350/ V-8 Mercury -HEI 1999 - 2001 0L304600 - 0M299999 805185A36 87-892150Q02 N/A N/A
350 Mag. MPI Ski 350/ V-8 Delco - HEI 2002 - 2007 0M300000 - 1A089999 879150A87 N/A N/A N/A
350 Mag. Ski 350/ V-8 Thunderbolt IV & V 1991 - 1997 0D505450 - 0K999999 805185A36 87-892150Q02 N/A N/A
5.7L 350/ V-8 Thunderbolt IV & V 1987 - 2009 0B773305 - 1A600136 805185A36 87-892150Q02 N/A N/A
5.7L EFI 350/ V-8 Delco - HEI 1995 - 1997 0F225560 - 0K999999 805222A 1 77-8M6008208 811639T 811641
5.7L EFI (Gen +) 350/ V-8 Delco - HEI 1998 0L010035 - 0L325976 805222A 1 77-8M6008208 811639T 811641
5.7L EFI (Gen +) 350/ V-8 Delco - HEI 1998 0L326000 - 0L331598 805222A 1 77-8M6008208 811639T 811641
5.7L EFI (Gen +) 350/ V-8 Delco - HEI 1998 0L331992 - 0L335715 805222A 1 77-8M6008208 811639T 811641
5.7L EFI (Gen +) 350/ V-8 Delco - HEI 1998 0L336000 - 0L339999 805222A 1 77-8M6008208 811639T 811641
5.7L EFI (Gen +) 350/ V-8 Mercury -HEI 1999 0L325977 - 0L325999 805185A36 87-892150Q02 N/A N/A
5.7L EFI (Gen +) 350/ V-8 Mercury -HEI 1999 0L331599 - 0L331991 805185A36 87-892150Q02 N/A N/A
5.7L EFI (Gen +) 350/ V-8 Mercury -HEI 1999 0L335716 - 0L335999 805185A36 87-892150Q02 N/A N/A
5.7L EFI (Gen +) 350/ V-8 Mercury -HEI 1999 - 2001 0L340000 - 0M299999 805185A36 87-892150Q02 N/A N/A
5.7L EFI MIE (Gen+) 350/ V-8 Delco - HEI 1997 0K040300 - 0K999999 805222A 1 77-8M6008208 811639T 811641
5.7L MIE 350/ V-8 Thunderbolt IV & V 1988 - 2010 0B788152 - 1A092388 805185A36 87-892150Q02 N/A N/A
Quicksilver Product Guide 667
