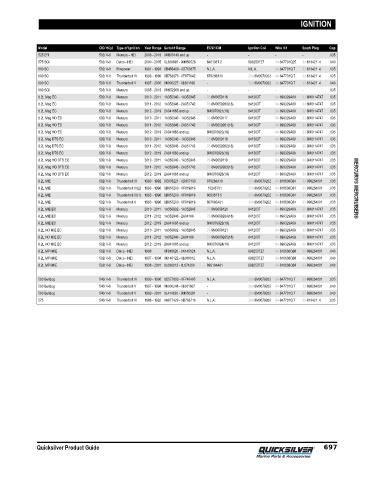

Page 706 - Quicksilver Product Guide (2020) - 8M0163242

IGNITION

Model CID/ #Cyl Type of Ignition Year Range Serial # Range ECM/ ICM Ignition Coil Wire Kit Spark Plug Gap
525 EFI 502/ V-8 Mercury - HEI 2003 - 2019 0M900146 and up - - - - .035
575 SCi 502/ V-8 Delco - HEI 2000 - 2005 0L306696 - 0M950526 840138T 2 898253T27 84-847701Q25 33-813421 4 .040
600 SC 502/ V-8 Firepower 1991 - 1993 0D456489 - 0D763875 N.L.A. N.L.A. 84-847701Q 7 33-813421 4 .035
600 SC 502/ V-8 Thunderbolt IV 1993 - 1996 0D763876 - 0F877642 879288A10 300-8M0079202 84-847701Q 7 33-813421 4 .035
600 SC 502/ V-8 Thunderbolt V 1997 - 2000 0K000227 - 0L601186 - 300-8M0079202 84-847701Q 7 33-813421 4 .040
600 SCi 502/ V-8 Mercury 2005 - 2019 0M952908 and up - - - - .035
8.2L Mag EC 502/ V-8 Mercury 2010 - 2011 1A350340 - 1A352945 78-8M0059116 841203T 84-899329A09 33-8M0114747 .035
8.2L Mag EC 502/ V-8 Mercury 2011 - 2012 1A352946 - 2A051742 78-8M0059260(18) 841203T 84-899329A09 33-8M0114747 .035
8.2L Mag EC 502/ V-8 Mercury 2012 - 2019 2A041665 and up 8M0070921(19) 841203T 84-899329A09 33-8M0114747 .035
8.2L Mag HO EC 502/ V-8 Mercury 2010 - 2011 1A350340 - 1A352945 78-8M0059117 841203T 84-899329A09 33-8M0114747 .035
8.2L Mag HO EC 502/ V-8 Mercury 2011 - 2012 1A352946 - 2A051742 78-8M0059261(18) 841203T 84-899329A09 33-8M0114747 .035
8.2L Mag HO EC 502/ V-8 Mercury 2012 - 2019 2A041665 and up 8M0070922(19) 841203T 84-899329A09 33-8M0114747 .035
8.2L Mag DTS EC 502/ V-8 Mercury 2010 - 2011 1A350340 - 1A352945 78-8M0059118 841203T 84-899329A09 33-8M0114747 .035
8.2L Mag DTS EC 502/ V-8 Mercury 2011 - 2012 1A352946 - 2A051742 78-8M0059262(18) 841203T 84-899329A09 33-8M0114747 .035
8.2L Mag DTS EC 502/ V-8 Mercury 2012 - 2019 2A041665 and up 8M0070925(19) 841203T 84-899329A09 33-8M0114747 .035
8.2L Mag HO DTS EC 502/ V-8 Mercury 2010 - 2011 1A350340 - 1A352945 78-8M0059119 841203T 84-899329A09 33-8M0114747 .035
8.2L Mag HO DTS EC 502/ V-8 Mercury 2011 - 2012 1A352946 - 2A051742 78-8M0059263(18) 841203T 84-899329A09 33-8M0114747 .035
8.2L Mag HO DTS EC 502/ V-8 Mercury 2012 - 2019 2A041665 and up 8M0070926(19) 841203T 84-899329A09 33-8M0114747 .035
8.2L MIE 502/ V-8 Thunderbolt IV 1990 - 1992 0C878221 - 0D857199 879288A10 300-8M0079202 84-816608Q61 33-898264001 .035
8.2L MIE 502/ V-8 Thunderbolt IV(2) 1993 - 1996 0D857200 - 0F819619 15248T01 300-8M0079202 84-816608Q61 33-898264001 .035 MERCURY® MERCRUISER®
8.2L MIE 502/ V-8 Thunderbolt IV(1) 1993 - 1996 0D857200 - 0F819619 805361T 5 300-8M0079202 84-816608Q61 33-898264001 .035
8.2L MIE 502/ V-8 Thunderbolt V 1993 - 1996 0D857200 - 0F819619 807085A01 300-8M0079202 84-816608Q61 33-898264001 .035
8.2L MIE EC 502/ V-8 Mercury 2010 - 2011 1A350802 - 1A352945 78-8M0059120 841203T 84-899329A09 33-8M0114747 .035
8.2L MIE EC 502/ V-8 Mercury 2011 - 2012 1A352946 - 2A04166 78-8M0059264(18) 841203T 84-899329A09 33-8M0114747 .035
8.2L MIE EC 502/ V-8 Mercury 2012 - 2019 2A041665 and up 8M0070923(19) 841203T 84-899329A09 33-8M0114747 .035
8.2L HO MIE EC 502/ V-8 Mercury 2010 - 2011 1A350802 - 1A352945 78-8M0059121 841203T 84-899329A09 33-8M0114747 .035
8.2L HO MIE EC 502/ V-8 Mercury 2011 - 2012 1A352946 - 2A04166 78-8M0059265(18) 841203T 84-899329A09 33-8M0114747 .035
8.2L HO MIE EC 502/ V-8 Mercury 2012 - 2019 2A041665 and up 8M0070924(19) 841203T 84-899329A09 33-8M0114747 .035
8.2L MPI MIE 502/ V-8 Delco - HEI 1996 0F819620 - 0K145121 N.L.A. 898253T27 84-816608Q68 33-898264001 .040
8.2L MPI MIE 502/ V-8 Delco - HEI 1997 - 1998 0K145122 - 0L086012 N.L.A. 898253T27 84-816608Q68 33-898264001 .040
8.2L MPI MIE 502/ V-8 Delco - HEI 1998 - 2001 0L086013 - 0L674200 895104A01 898253T27 84-816608Q68 33-898264001 .040

500 Bulldog 540/ V-8 Thunderbolt IV 1990 - 1996 0C577003 - 0F745405 N.L.A. 300-8M0079202 84-847701Q 7 33-898264001 .035
500 Bulldog 540/ V-8 Thunderbolt V 1997 - 1998 0K000248 - 0L001607 - 300-8M0079202 84-847701Q 7 33-898264001 .040
500 Bulldog 540/ V-8 Thunderbolt V 1999 - 2001 0L414620 - 0M050281 - 300-8M0079202 84-847701Q 7 33-898264001 .040
575 540/ V-8 Thunderbolt IV 1986 - 1992 0A677429 - 0D763716 N.L.A. 300-8M0079202 84-847701Q 7 33-813421 4 .035

Quicksilver Product Guide 697
