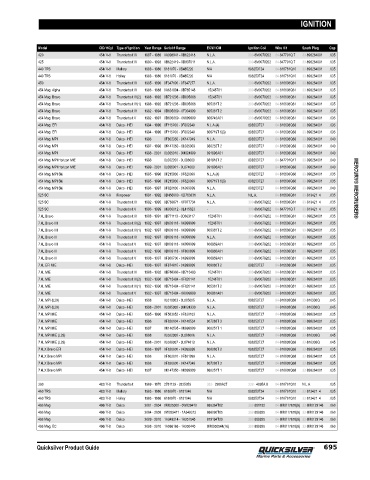

Page 704 - Quicksilver Product Guide (2020) - 8M0163242

IGNITION

Model CID/ #Cyl Type of Ignition Year Range Serial # Range ECM/ ICM Ignition Coil Wire Kit Spark Plug Gap
420 454/ V-8 Thunderbolt IV 1987 - 1989 0A398941 - 0B622418 N.L.A. 300-8M0079202 84-847701Q 7 33-898264001 .035
425 454/ V-8 Thunderbolt IV 1990 - 1993 0B622419 - 0D937011 N.L.A. 300-8M0079202 84-847701Q 7 33-898264001 .035
440 TRS 454/ V-8 Mallory 1983 - 1986 6181070 - 0B485220 N/A 898253T24 84-816761Q10 33-898264001 .035
440 TRS 454/ V-8 Holley 1983 - 1986 6181070 - 0B485220 N/A 898253T24 84-816761Q10 33-898264001 .035
450 454/ V-8 Thunderbolt IV 1995 - 1996 0F347100 - 0F347277 N.L.A. 300-8M0079202 84-816608Q61 33-898264001 .035
454 Mag. Alpha 454/ V-8 Thunderbolt IV 1986 - 1988 0A631894 - 0B785148 15248T01 300-8M0079202 84-816608Q61 33-898264001 .035
454 Mag. Bravo 454/ V-8 Thunderbolt IV(2) 1988 - 1992 0B721206 - 0D805068 15248T01 300-8M0079202 84-816608Q61 33-898264001 .035
454 Mag. Bravo 454/ V-8 Thunderbolt IV(1) 1988 - 1992 0B721206 - 0D805068 805361T 2 300-8M0079202 84-816608Q61 33-898264001 .035
454 Mag. Bravo 454/ V-8 Thunderbolt IV 1992 - 1994 0D805069 - 0F304999 805361T 2 300-8M0079202 84-816608Q61 33-898264001 .035
454 Mag. Bravo 454/ V-8 Thunderbolt V 1992 - 1997 0D805069 - 0K999999 806745A01 300-8M0079202 84-816608Q61 33-898264001 .035
454 Mag. EFI 454/ V-8 Delco - HEI 1994 - 1996 0F115700 - 0F802349 N.L.A.(4) 898253T27 84-816608Q68 33-898264001 .035
454 Mag. EFI 454/ V-8 Delco - HEI 1994 - 1996 0F115700 - 0F802349 806719T 6(3) 898253T27 84-816608Q68 33-898264001 .035
454 Mag. MPI 454/ V-8 Delco - HEI 1996 0F802350 - 0K147349 N.L.A. 898253T27 84-816608Q68 33-898264001 .040
454 Mag. MPI 454/ V-8 Delco - HEI 1997 - 1998 0K147350 - 0L085009 860252T 2 898253T27 84-816608Q68 33-898264001 .040
454 Mag. MPI 454/ V-8 Delco - HEI 1998 - 2001 0L085010 - 0M024999 891896A01 898253T27 84-816608Q68 33-898264001 .040
454 Mag. MPI Horizon MIE 454/ V-8 Delco - HEI 1998 0L002200 - 0L086000 861818T 2 898253T27 84-847701Q17 33-898264001 .040
454 Mag. MPI Horizon MIE 454/ V-8 Delco - HEI 1999 - 2001 0L086001 - 0L674000 891896A01 898253T27 84-816608Q68 33-898264001 .040
454 Mag. MPI Ski 454/ V-8 Delco - HEI 1995 - 1996 0F215800 - 0F820099 N.L.A.(4) 898253T27 84-816608Q68 33-898264001 .035
454 Mag. MPI Ski 454/ V-8 Delco - HEI 1995 - 1996 0F215800 - 0F820099 806719T 6(3) 898253T27 84-816608Q68 33-898264001 .035
454 Mag. MPI Ski 454/ V-8 Delco - HEI 1996 - 1997 0F820100 - 0K999999 N.L.A. 898253T27 84-816608Q68 33-898264001 .040 MERCURY® MERCRUISER®
525 SC 454/ V-8 Firepower 1991 - 1992 0D456000 - 0D763831 N.L.A. N.L.A. 84-816608Q61 33-813421 4 .035
525 SC 454/ V-8 Thunderbolt IV 1992 - 1995 0D763871 - 0F877734 N.L.A. 300-8M0079202 84-816608Q61 33-813421 4 .035
525 SC 454/ V-8 Thunderbolt V 1996 - 1999 0K000012 - 0L415623 - 300-8M0079202 84-847701Q 7 33-813421 4 .035
7.4L Bravo 454/ V-8 Thunderbolt IV 1988 - 1991 0B771113 - 0D603117 15248T01 300-8M0079202 84-816608Q61 33-898264001 .035
7.4L Bravo I/II 454/ V-8 Thunderbolt IV(2) 1992 - 1997 0D603118 - 0K999999 15248T01 300-8M0079202 84-816608Q61 33-898264001 .035
7.4L Bravo I/II 454/ V-8 Thunderbolt IV(1) 1992 - 1997 0D603118 - 0K999999 805361T 2 300-8M0079202 84-816608Q61 33-898264001 .035
7.4L Bravo III 454/ V-8 Thunderbolt IV 1992 - 1997 0D603118 - 0K999999 N.L.A. 300-8M0079202 84-816608Q61 33-898264001 .035
7.4L Bravo I/II 454/ V-8 Thunderbolt V 1992 - 1997 0D603118 - 0K999999 806959A01 300-8M0079202 84-816608Q61 33-898264001 .035
7.4L Bravo III 454/ V-8 Thunderbolt V 1992 - 1996 0D603118 - 0F800699 806960A01 300-8M0079202 84-816608Q61 33-898264001 .035
7.4L Bravo III 454/ V-8 Thunderbolt V 1996 - 1997 0F800700 - 0K999999 806959A01 300-8M0079202 84-816608Q61 33-898264001 .035
7.4L EFI MIE 454/ V-8 Delco - HEI 1996 - 1997 0F874815 - 0K999999 808060T 2 898253T27 84-816608Q68 33-898264001 .035
7.4L MIE 454/ V-8 Thunderbolt IV 1988 - 1992 0B788366 - 0D715493 15248T01 300-8M0079202 84-816608Q61 33-898264001 .035
7.4L MIE 454/ V-8 Thunderbolt IV(2) 1992 - 1996 0D715494 - 0F820141 15248T01 300-8M0079202 84-816608Q61 33-898264001 .035
7.4L MIE 454/ V-8 Thunderbolt IV(1) 1992 - 1996 0D715494 - 0F820141 805361T 2 300-8M0079202 84-816608Q61 33-898264001 .035
7.4L MIE 454/ V-8 Thunderbolt V 1992 - 1997 0D715494 - 0K999999 806961A01 300-8M0079202 84-816608Q61 33-898264001 .035
7.4L MPI (L29) 454/ V-8 Delco - HEI 1998 0L010003 - 0L085005 N.L.A. 898253T27 84-816608Q68 33-816336Q .045
7.4L MPI (L29) 454/ V-8 Delco - HEI 1998 - 2001 0L085006 - 0M024330 N.L.A. 898253T27 84-816608Q68 33-816336Q .045
7.4L MPI MIE 454/ V-8 Delco - HEI 1995 - 1996 0F563052 - 0F820103 N.L.A. 898253T27 84-816608Q68 33-898264001 .035
7.4L MPI MIE 454/ V-8 Delco - HEI 1996 0F820104 - 0K146534 807268T 3 898253T27 84-816608Q68 33-898264001 .035
7.4L MPI MIE 454/ V-8 Delco - HEI 1997 0K146535 - 0K999999 860251T 1 898253T27 84-816608Q68 33-898264001 .035
7.4L MPI MIE (L29) 454/ V-8 Delco - HEI 1998 0L002006 - 0L086006 N.L.A. 898253T27 84-816608Q68 33-816336Q .045
7.4L MPI MIE (L29) 454/ V-8 Delco - HEI 1998 - 2001 0L086007 - 0L674613 N.L.A. 898253T27 84-816608Q68 33-816336Q .045
7.4LX Bravo EFI 454/ V-8 Delco - HEI 1996 - 1997 0F820000 - 0K999999 808060T 2 898253T27 84-816608Q68 33-898264001 .035
7.4LX Bravo MPI 454/ V-8 Delco - HEI 1996 0F602010 - 0F801999 N.L.A. 898253T27 84-816608Q68 33-898264001 .035
7.4LX Bravo MPI 454/ V-8 Delco - HEI 1996 0F820000 - 0K147349 807268T 3 898253T27 84-816608Q68 33-898264001 .035
7.4LX Bravo MPI 454/ V-8 Delco - HEI 1997 0K147350 - 0K999999 860251T 1 898253T27 84-816608Q68 33-898264001 .035

390 482/ V-8 Thunderbolt 1969 - 1970 2781129 - 2825059 332- 2986A27 332- 4895A 8 84-816761Q10 N.L.A. .035
460 TRS 482/ V-8 Mallory 1983 - 1986 6180970 - 6181046 N/A 898253T24 84-816761Q10 33-813421 4 .035
460 TRS 482/ V-8 Holley 1983 - 1986 6180970 - 6181046 N/A 898253T24 84-816761Q10 33-813421 4 .035
496 Mag 496/ V-8 Delco 2001 - 2004 0M025000 - 0W029410 865364T02 392-881732 84-8M0117678(9) 33-8M0129146 .060
496 Mag 496/ V-8 Delco 2004 - 2008 0W029411 - 1A349313 866090T05 392-889925 84-8M0117678(9) 33-8M0129146 .060
496 Mag 496/ V-8 Delco 2009 - 2010 1A349314 - 1A351548 879194T20 392-889925 84-8M0117678(9) 33-8M0129146 .060
496 Mag, EC 496/ V-8 Delco 2008 - 2010 1A066166 - 1A350440 8M0050544(16) 392-889925 84-8M0117678(9) 33-8M0129146 .060

Quicksilver Product Guide 695
