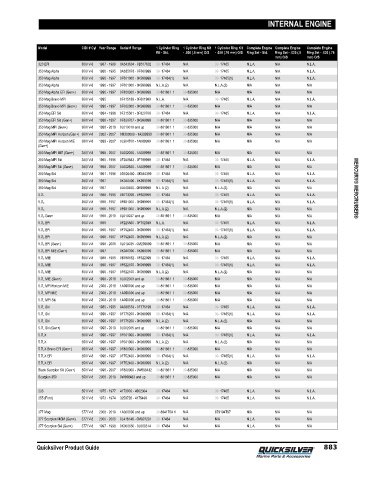

Page 892 - Quicksilver Product Guide (2020) - 8M0163242

INTERNAL ENGINE

Model CID/ # Cyl Year Range Serial # Range 1 Cylinder Ring 1 Cylinder Ring Kit 1 Cylinder Ring Kit Complete Engine Complete Engine Complete Engine
Kit - Std. - .020 (.5 mm) O/S - .030 (.76 mm) O/S Ring Set - Std. Ring Set - .020 (.5 Ring Set - .030 (.76
mm) O/S mm) O/S
320 EFI 350/ V-8 1987 - 1989 0A543604 - 0B517602 39- 17464 N/A 39- 17465 N.L.A. N/A N.L.A.
350 Mag Alpha 350/ V-8 1986 - 1995 0A635178 - 0F600999 39- 17464 N/A 39- 17465 N.L.A. N/A N.L.A.
350 Mag Alpha 350/ V-8 1996 - 1997 0F601000 - 0K999999 39- 17464(1) N/A 39- 17465(1) N.L.A. N/A N.L.A.
350 Mag Alpha 350/ V-8 1996 - 1997 0F601000 - 0K999999 N.L.A.(2) N/A N.L.A.(2) N/A N/A N/A
350 Mag Alpha EFI (Gen+) 350/ V-8 1996 - 1997 0F800300 - 0K999999 39-801861 1 39-835000 N/A N/A N/A N/A
350 Mag Bravo MPI 350/ V-8 1995 0F415189 - 0F601999 N.L.A. N/A 39- 17465 N.L.A. N/A N.L.A.
350 Mag Bravo MPI (Gen+) 350/ V-8 1996 - 1997 0F602000 - 0K999999 39-801861 1 39-835000 N/A N/A N/A N/A
350 Mag EFI Ski 350/ V-8 1994 - 1996 0F215561 - 0F820706 39- 17464 N/A 39- 17465 N.L.A. N/A N.L.A.
350 Mag EFI Ski (Gen+) 350/ V-8 1996 - 1997 0F820707 - 0K999999 39-801861 1 39-835000 N/A N/A N/A N/A
350 Mag MPI (Gen+) 350/ V-8 1998 - 2019 0L010019 and up 39-801861 1 39-835000 N/A N/A N/A N/A
350 Mag MPI Horizon (Gen+) 350/ V-8 2002 - 2007 0M300000 - 1A299999 39-801861 1 39-835000 N/A N/A N/A N/A
350 Mag MPI Horizon MIE 350/ V-8 1999 - 2007 0L304700 - 1A089999 39-801861 1 39-835000 N/A N/A N/A N/A
(Gen+)
350 Mag MPI MIE (Gen+) 350/ V-8 1998 - 2007 0L002008 - 1A089999 39-801861 1 39-835000 N/A N/A N/A N/A
350 Mag MPI Ski 350/ V-8 1995 - 1996 0F350583 - 0F799999 39- 17464 N/A 39- 17465 N.L.A. N/A N.L.A.
350 Mag MPI Ski (Gen+) 350/ V-8 1998 - 2007 0L002600 - 1A089999 39-801861 1 39-835000 N/A N/A N/A N/A
350 Mag Ski 350/ V-8 1991 - 1996 0D505450 - 0K040399 39- 17464 N/A 39- 17465 N.L.A. N/A N.L.A.
350 Mag Ski 350/ V-8 1997 0K040400 - 0K999999 39- 17464(1) N/A 39- 17465(1) N.L.A. N/A N.L.A.
350 Mag Ski 350/ V-8 1997 0L040400 - 0K999999 N.L.A.(2) N/A N.L.A.(2) N/A N/A N/A MERCURY® MERCRUISER®
5.7L 350/ V-8 1988 - 1995 0B773305 - 0F600999 39- 17464 N/A 39- 17465 N.L.A. N/A N.L.A.
5.7L 350/ V-8 1996 - 1997 0F601000 - 0K999999 39- 17464(1) N/A 39- 17465(1) N.L.A. N/A N.L.A.
5.7L 350/ V-8 1996 - 1997 0F601000 - 0K999999 N.L.A.(2) N/A N.L.A.(2) N/A N/A N/A
5.7L Gen+ 350/ V-8 1998 - 2019 0L010037 and up 39-801861 1 39-835000 N/A N/A N/A N/A
5.7L EFI 350/ V-8 1995 0F225560 - 0F752399 N.L.A. N/A 39- 17465 N.L.A. N/A N.L.A.
5.7L EFI 350/ V-8 1996 - 1997 0F752400 - 0K999999 39- 17464(1) N/A 39- 17465(1) N.L.A. N/A N.L.A.
5.7L EFI 350/ V-8 1996 - 1997 0F752400 - 0K999999 N.L.A.(2) N/A N.L.A.(2) N/A N/A N/A
5.7L EFI (Gen+) 350/ V-8 1998 - 2001 0L010035 - 0M299999 39-801861 1 39-835000 N/A N/A N/A N/A
5.7L EFI MIE (Gen+) 350/ V-8 1997 0K040300 - 0K999999 39-801861 1 39-835000 N/A N/A N/A N/A
5.7L MIE 350/ V-8 1988 - 1995 0B788152 - 0F622099 39- 17464 N/A 39- 17465 N.L.A. N/A N.L.A.
5.7L MIE 350/ V-8 1996 - 1997 0F622100 - 0K999999 39- 17464(1) N/A 39- 17465(1) N.L.A. N/A N.L.A.
5.7L MIE 350/ V-8 1996 - 1997 0F622100 - 0K999999 N.L.A.(2) N/A N.L.A.(2) N/A N/A N/A
5.7L MIE (Gen+) 350/ V-8 1998 - 2019 0L002003 and up 39-801861 1 39-835000 N/A N/A N/A N/A
5.7L MPI Horizon MIE 350/ V-8 2008 - 2019 1A090000 and up 39-801861 1 39-835000 N/A N/A N/A N/A
5.7L MPI MIE 350/ V-8 2008 - 2019 1A090000 and up 39-801861 1 39-835000 N/A N/A N/A N/A
5.7L MPI Ski 350/ V-8 2008 - 2019 1A090000 and up 39-801861 1 39-835000 N/A N/A N/A N/A
5.7L Ski 350/ V-8 1985 - 1995 0A338553 - 0F775199 39- 17464 N/A 39- 17465 N.L.A. N/A N.L.A.
5.7L Ski 350/ V-8 1996 - 1997 0F775200 - 0K999999 39- 17464(1) N/A 39- 17465(1) N.L.A. N/A N.L.A.
5.7L Ski 350/ V-8 1996 - 1997 0F775200 - 0K999999 N.L.A.(2) N/A N.L.A.(2) N/A N/A N/A
5.7L Ski (Gen+) 350/ V-8 1998 - 2019 0L002005 and up 39-801861 1 39-835000 N/A N/A N/A N/A
5.7LX 350/ V-8 1996 - 1997 0F601000 - 0K999999 39- 17464(1) N/A 39- 17465(1) N.L.A. N/A N.L.A.
5.7LX 350/ V-8 1996 - 1997 0F601000 - 0K999999 N.L.A.(2) N/A N.L.A.(2) N/A N/A N/A
5.7LX Bravo EFI (Gen+) 350/ V-8 1996 - 1997 0F800300 - 0K999999 39-801861 1 39-835000 N/A N/A N/A N/A
5.7LX EFI 350/ V-8 1996 - 1997 0F752400 - 0K999999 39- 17464(1) N/A 39- 17465(1) N.L.A. N/A N.L.A.
5.7LX EFI 350/ V-8 1996 - 1997 0F752400 - 0K999999 N.L.A.(2) N/A N.L.A.(2) N/A N/A N/A
Black Scorpion Ski (Gen+) 350/ V-8 1996 - 2007 0F800000 - 0W698432 39-801861 1 39-835000 N/A N/A N/A N/A
Scorpion 350 350/ V-8 2008 - 2019 0W698433 and up 39-801861 1 39-835000 N/A N/A N/A N/A

233 351/ V-8 1975 - 1977 4173000 - 4902304 39- 17464 N/A 39- 17465 N.L.A. N/A N.L.A.
255 (Ford) 351/ V-8 1973 - 1974 3258728 - 4175499 39- 17464 N/A 39- 17465 N.L.A. N/A N.L.A.

377 Mag 377/ V-8 2008 - 2019 1A300000 and up 39-864176A 1 N/A 879194T97 N/A N/A N/A
377 Scorpion MCM (Gen+) 377/ V-8 2000 - 2005 0L416146 - 0M907201 39- 17464 N/A N/A N.L.A. N/A N/A
377 Scorpion Ski (Gen+) 377/ V-8 1997 - 1998 0K000656 - 0L600314 39- 17464 N/A N/A N.L.A. N/A N/A

Quicksilver Product Guide 883
