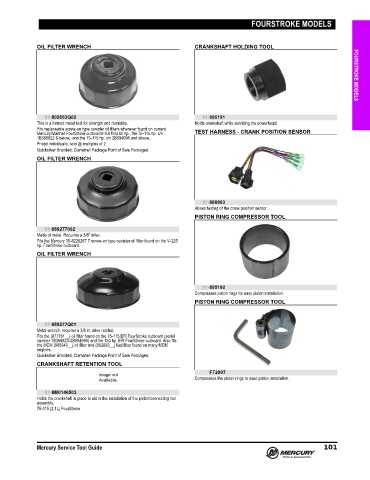

Page 108 - Mercury Service Tool Guide (2020) - 8M0163249

FOURSTROKE MODELS

OIL FILTER WRENCH CRANKSHAFT HOLDING TOOL FOURSTROKE MODELS

91-802653Q02 91-895191
This is a formed metal tool for strength and durability. Holds crankshaft while servicing the powerhead.
Fits replaceable screw‑on type canister oil filters wherever found on current
Mercury/Mariner FourStroke outboards 9.9 thru 60 hp., the 75‑115 hp. s/n TEST HARNESS - CRANK POSITION SENSOR
1B366822 & below, and the 75‑115 hp. s/n 2B094996 and above..
Priced individually, sold @ multiples of 2
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
OIL FILTER WRENCH

91-888863
Allows testing of the crank position sensor.
PISTON RING COMPRESSOR TOOL

91-889277002
Made of metal. Requires a 3/8" drive.
Fits the Mercury 35‑822626T 7 screw‑on type canister oil filter found on the V‑225
hp. FourStroke outboard.
OIL FILTER WRENCH

91-895192
Compresses piston rings for easy piston installation.
PISTON RING COMPRESSOR TOOL

91-889277Q01
Metal wrench, requires a 3/8 in. drive ratchet.
Fits the (877761__) oil filter found on the 75‑115 EFI FourStroke outboard (serial
number 1B366823‑2B094995) and the 150 hp. EFI FourStroke outboard. Also fits
the MCM (866340__) oil filter and (802893__) fuel filter found on many MCM
engines.
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
CRANKSHAFT RETENTION TOOL
FT2997
Compresses the piston rings to ease piston installation.
91-8M0146503
Holds the crankshaft in place to aid in the installation of the piston/connecting rod
assembly.
75‑115 (2.1L) FourStroke

Mercury Service Tool Guide 101
