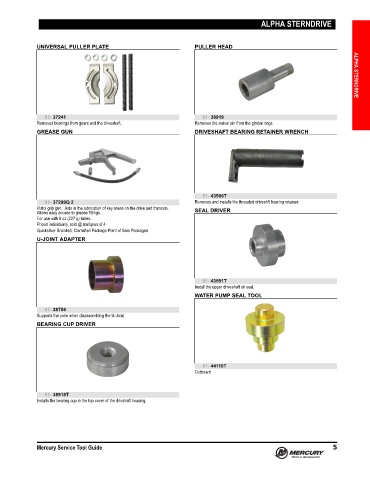

Page 12 - Mercury Service Tool Guide (2020) - 8M0163249

ALPHA STERNDRIVE

UNIVERSAL PULLER PLATE PULLER HEAD ALPHA STERNDRIVE

91- 37241 91- 38919
Removes bearings from gears and the driveshaft. Removes the swivel pin from the gimbal rings.
GREASE GUN DRIVESHAFT BEARING RETAINER WRENCH

91- 43506T
91- 37299Q 2 Removes and installs the threaded driveshft bearing retainer.
Pistol grip gun. Aids in the lubrication of key areas on the drive and transom. SEAL DRIVER
Allows easy access to grease fittings.
For use with 8 oz.(227 g) tubes.
Priced individually, sold @ multiples of 4
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
U-JOINT ADAPTER

91- 43591T
Install the upper driveshaft oil seal.
WATER PUMP SEAL TOOL

91- 38756
Supports the yoke when disassembling the U‑Joint.
BEARING CUP DRIVER

91- 44110T
Outboard

91- 38918T
Installs the bearing cup in the top cover of the drivshaft housing.

Mercury Service Tool Guide 5
