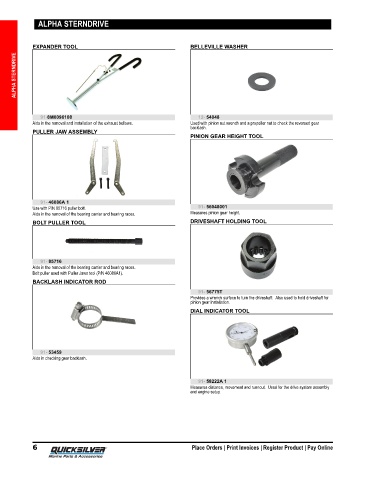

ALPHA STERNDRIVE
EXPANDER TOOL BELLEVILLE WASHER
ALPHA STERNDRIVE
91-8M0096108 12- 54048
Aids in the removal and installation of the exhaust bellows. Used with pinion nut wrench and a propeller nut to check the reversed gear
backlash.
PULLER JAW ASSEMBLY
PINION GEAR HEIGHT TOOL
91- 46086A 1
Use with P/N 85716 puller bolt. 91- 56048001
Aids in the removal of the bearing carrier and bearing races. Measures pinion gear height.
BOLT PULLER TOOL DRIVESHAFT HOLDING TOOL
91- 85716
Aids in the removal of the bearing carrier and bearing races..
Bolt puller used with Puller Jaws tool (P/N 46086A1).
BACKLASH INDICATOR ROD
91- 56775T
Provides a wrench surface to turn the driveshaft. Also used to hold driveshaft for
pinion gear installation.
DIAL INDICATOR TOOL
91- 53459
Aids in checking gear backlash.
91- 58222A 1
Measures distance, movement and runnout. Used for the drive system assembly
and engine setup.
